CASY003/B
MSRP:
POA
CYCASY003-B
CASY chassis 6 space - 90° surface mount - 120mm

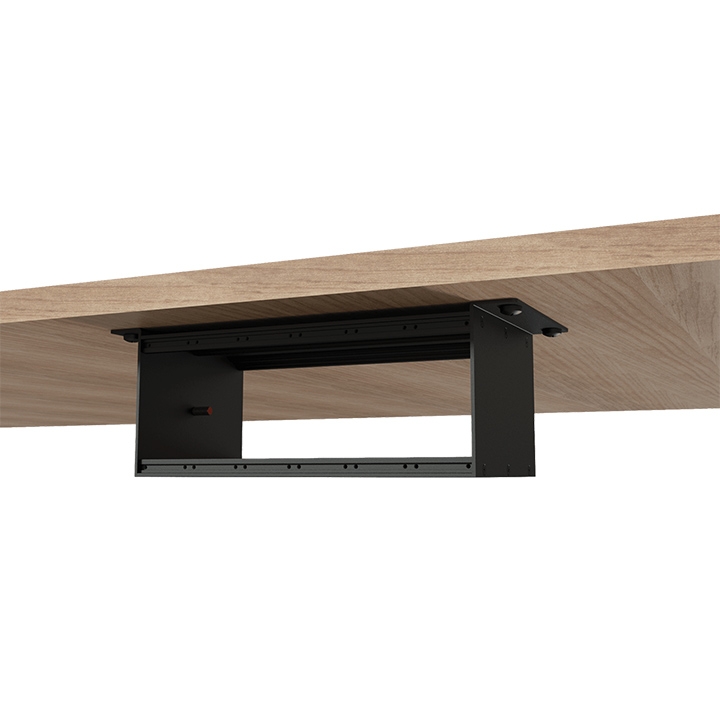

The CASY003 is a table/desk mountable chassis that can be fitted with 6 modules from the CASY range. The flexible and modular structure ensures maximum versatility, allowing the system to be adapted to project-specific requirements. Possibilities range from audio, video, and data interconnection to power distribution, control panels, power supplies, and many more. The aluminum top and bottom construction feature pre-threaded hole inserts allowing module installation with a maximum of 6 units on both the front and rear sides. Modules can be fixed inside the unit using the included M3 screws, while the side ears allow the unit to be mounted both on and under any table or desk. The side ears are constructed out of cold-rolled steel with internal pillars for chassis grounding. The overall construction is finished in a black (RAL9004) structured and scratch-resistant powder coating.
Features:
- Flexible structure for system integration & connectivity
- Wide variation of compatible modules available
- Stores 6 units of CASY modules on the front & rear
- 120 mm usable depth
- Pre-threaded mounting profile for easy assembly
- Aluminum extruded construction with steel side ears
- Structured and scratch-resistant black powder coating
- Table/desk mounting ears
| Product Features | ||||
|---|---|---|---|---|
| Dimensions | 10.51" x 3.67" x 4.72" (267 x 93.1 x 120 mm) (W x H x D) | |||
| Weight | 2.12 lbs (0.963 kg) | |||
| Construction | Alu extrusion with steel side ears | |||
| Module | Units | 6 x front side & 6 x rear side | ||
| Assembly | Pre-threaded M3 screw holes | |||
| Mounting | Table/desk mounting ears | |||
| Finish | Structured powder coating | |||
| Colors | Black (RAL9004) | |||
| Accessories | Optional | CASYx0x - Blind/connector hole plates | ||
| CASYx2x - XLR connector plates | ||||
| CASYx3x - Audio signal connector plates | ||||
| CASYx4x - Loudspeaker connector plates | ||||
| CASYx5x - Video connector plates | ||||
| CASYx6x - Data connector plates | ||||
| CASYx8x - Power connector plates | ||||
| CASYx9x - Other plates | ||||
*Note: CAYMON operates a policy of continuous development. CAYMON reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details https://caymon.eu
