CASY034/B
MSRP:
POA
CYCASY034-B

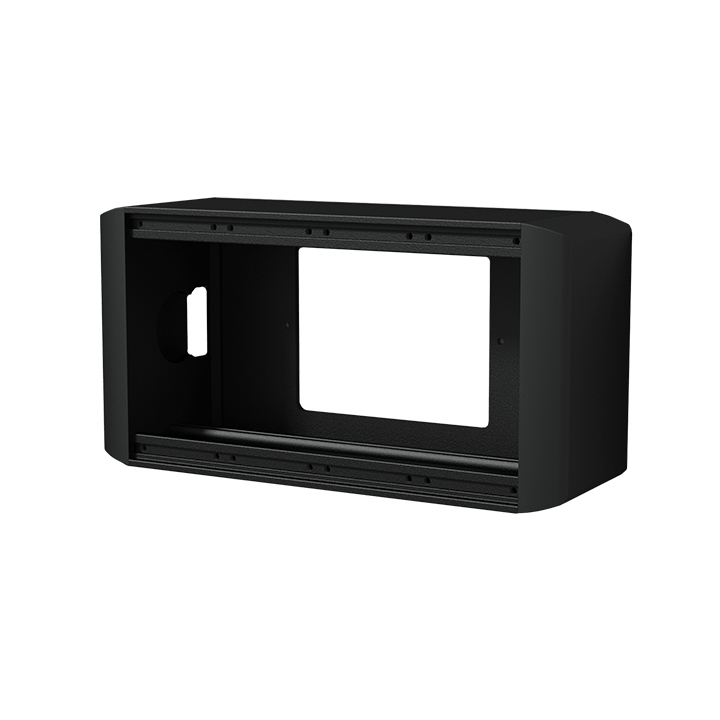

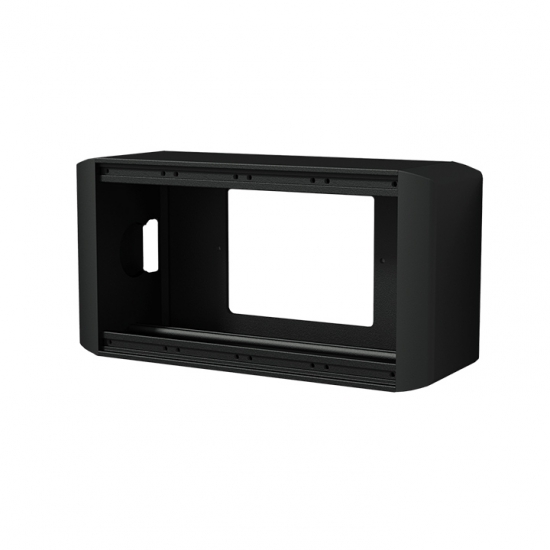

CASY on-wall chassis - 4 space
The CASY034 is a modular on-wall chassis that can be fitted with 4 modules from the CASY range. The flexible and modular structure ensures maximum versatility, allowing to adapt of the system to each project's specific requirements. Possibilities are ranging from audio, video, and data interconnection to power distribution, control panels, power supplies, and many more.
The aluminum construction features pre-threaded hole inserts allowing module installation with a maximum of 4 units with a built-in depth up to 60 mm. It can be mounted on any wall or surface, while cable entry is possible through large access holes on the rear side. The sides are constructed out of ABS material with break-out points allowing cable entry through a duct or gland. Modules can be fixed inside the unit using the included M3 screws. The overall construction is finished in a black (RAL9004) structured and scratch-resistant powder coating.
Features:
- Wide variation of compatible modules available
- 60 mm usable depth
- Pre-threaded mounting profile for easy assembly
- Structured and scratch-resistant black powder coating
- Aluminum extruded construction with rounded ABS sides
- Stores 4 units of CASY modules
- Flexible system for system integration & connectivity
- Provided cable gland entry
| Product Features | ||||
|---|---|---|---|---|
| Module | Units | 4 x front side | ||
| Dimensions | 6.77" x 3.47" x 2.56" (172 x 88.1 x 65 mm) (W x H x D) | |||
| Weight | 0.93 lbs (0.42 kg) | |||
| Connection | Large access holes on the rear side Cable duct or gland entry on the sides | |||
| Finish | Structured powder coating | |||
| Colors | Black (RAL9004) | |||
| Construction | Alu extrusion with plastic side covers | |||
| Max. usable depth | 60 mm (2.36") | |||
*Note: CAYMON operates a policy of continuous development. CAYMON reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details https://caymon.eu
