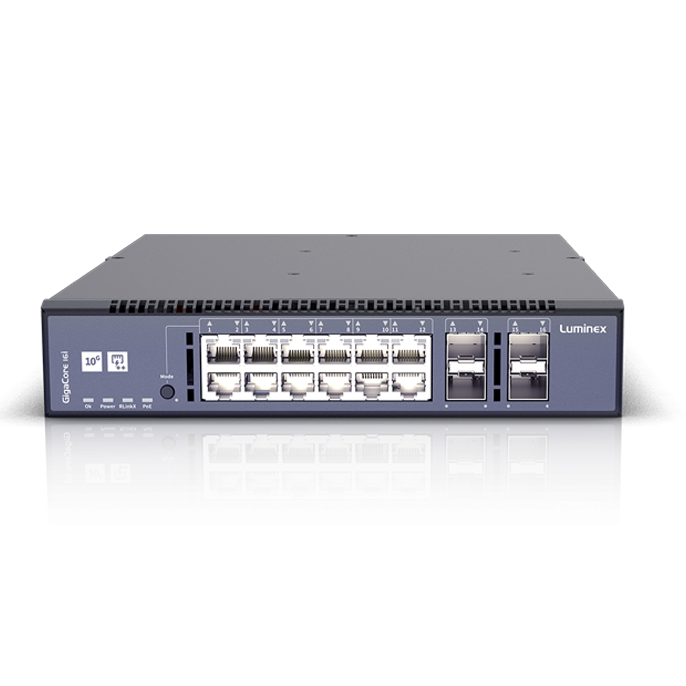

GigaCore 16i

MSRP: POA
LU0100090-10G

10Gb Network switch for converged AV networks

GigaCore 16i is a 10 Gigabit Ethernet switch in a ½ 19” package, dedicated to AV integration and installations where there are specific requirements to available space and mounting.

It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.

Variant MSRP
GigaCore 16i-12x1G-4x10G(SFP+) (LU0100090-10G) LU0100090-10G POA
Luminex GigaCore 16i-12x1G-4x10G(SFP+)-PoE++ (LU0100090-10G-POE) LU0100090-10G-POE POA
Would you like a Demo?

10Gb Connectivity

10Gb connectivity allows full network convergence of lighting control, audio, intercom, and video.

PoE++

PoE++ implementation on every copper port allows you to connect any PoE device available today.

Today’s PoE standards (802.3af802.3at and 802.3bt) are all met.
GigaCore 16i can directly drive almost any IP PTZ camera, network node or PoE powered loudspeaker on the market.

AV validated for real applications

GigaCore switches are fully validated in real-world applications with major brands in the AV industry for different protocols, including NDI™, Dante™, AVB/MILAN, AES67ST-2110IPMXMA-Net, and many more.

We don’t just approve against a protocol but actually test it. Because of real world application validation and interoperability testing, we understand the applications and make sure you can deploy our product with confidence.
Luminex support team really speaks your language and has a vast amount of AV knowledge built up, not just from talking protocols but mainly from working with you and living through your real application network challenges.

Robust yet silent design

robust yet silent design allows you to use GigaCore in any AV environment.

Fans are speed controlled to have minimal noise impact and guarantee a long-life operation.
This allows you to place the GigaCore in the most quiet environments like theaters and studio’s.

Araneo to manage and monitor the complete system

All GigaCore switches can be managed with a single network-wide tool: Araneo

Araneo’s online mode shows everything you need to know about the status of your GigaCore network. Data streams and topology are visualized as are the port status of every GigaCore.

Monitor your network with confidence and act before the show gets interrupted!

In offline mode, Araneo lets you plan the complete network topology and GigaCore settings in advance. Reducing network commissioning time to a mere click of a button.

Araneo Health Check proactively checks vital parameters of your network and ensures consistency throughout.

Intuitive web UI

The built-in web UI allows you to adjust the settings in an intuitive way. Assigning Groups (VLANS) to ports, creating trunks or adjusting other port- and PoE settings can be done  on the fly and  the status page gives you an overview of the complete switch at a glance. The toolbox page allows management of profiles and lets you upgrade firmware easily.



Consistency in LED colours

Consistent Group (VLAN) colours in the web UI, in Araneo and on the front panel LED’s.

  • Most suitable applications: Installations
  • PoE: PoE ++ Optional (up to 450W)
  • RLinkX (Link redundancy): Yes
  • Groups (VLAN segmentation): Yes
  • MultiLinkX (Link aggregation): Yes (With future FW upgrade)
  • Profile manager: Yes
  • Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
  • MAC address table: 16384 entries
  • Address learning / Aging: Self learning, Auto aging
  • Switching throughput: 104Gbps
  • Jumbo frames: MTU up to 12000
  • IGMP support: Yes (V1/V2/V3)
  • IGMP snooping: Yes, enabled by default
  • Port sensing: Auto negotiation
  • Auto crossover: MDI / MDIX
  • Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

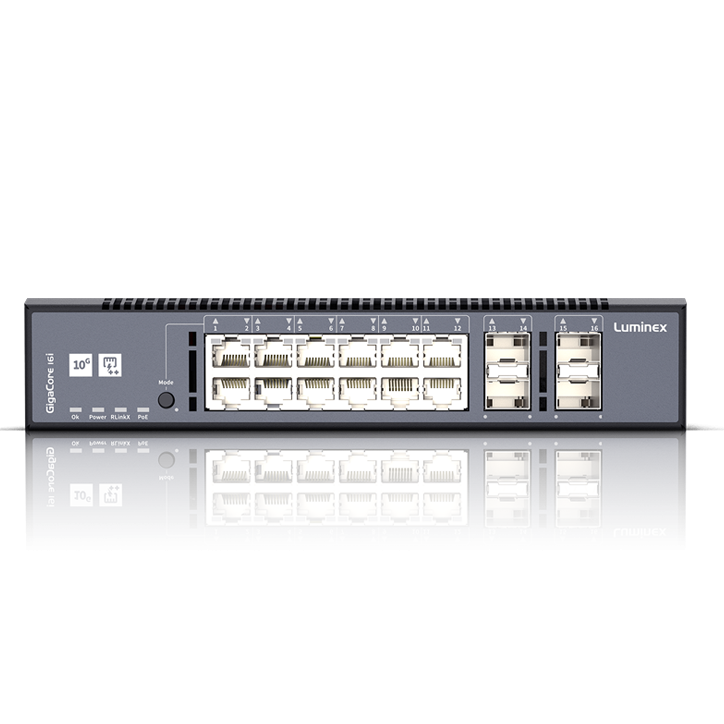

  • Ethernet connectivity: 12 x RJ45 connectors (1Gbps))
  • Fiber connectivity: 4 x SFP+ cages (10Gbps/1Gbps) (independent from other ports)
  • Ethernet port speed: 1Gbps

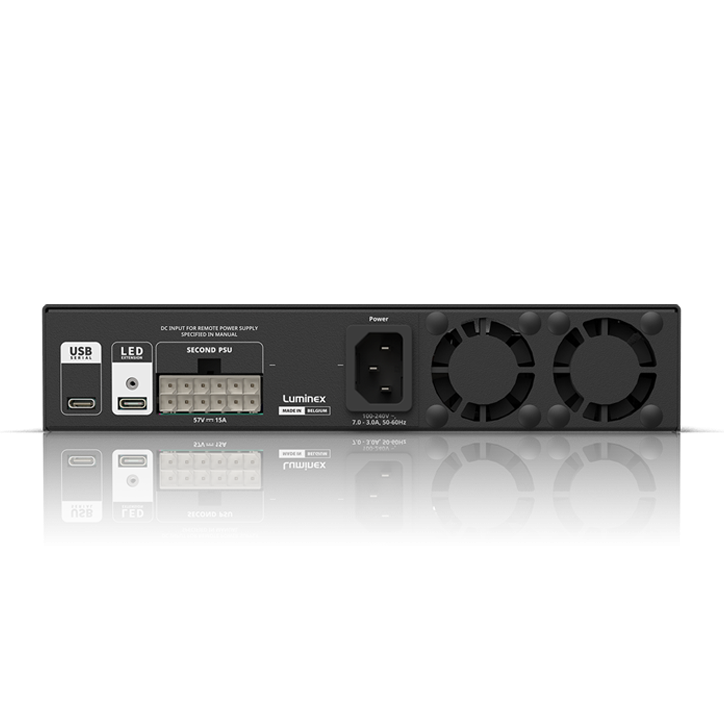

  • Serial: 1 x USB C
  • Power connectivity: 1 x IEC (C14)
  • Power input: 100-240VAC, 50-60Hz
  • Power consumption: Maximum 60W - Maximum 700W (Depending on configuration)
  • Fuse: NA
  • Backup power input: Through optional second power supply unit (PoE model only)
  • Backup PoE power input: Through optional second power supply unit (PoE model only)
  • PoE: PoE ++ Optional (up to 450W)
  • Supported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), PoE++ (802.3bt) (optional), IEEE 1588 PTP V2, AVB/MILAN, IEEE 802.1as (gPTP)
  • Sound protocol compliance: Yes (low jitter)
  • Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.3bt PoE++ 90W(optional), IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2,IEEE 802.1 BA-2011 AVB, IEEE 802.1as (gPTP)
  • Display and jog: NA
  • Configuration: Network wide configuration through Araneo software, through the built-in web server,
  • Status LEDs:
    • Global status LEDs: Device, power, PoE power and mode
    • Port status LEDs: PoE, groups, link/activity and port speed
    • Dark mode available
  • Colored RGB LEDs: Yes
  • Mounting: Rack, 100mm x 100mm Vesa spaced mount
  • Enclosure: Robust metal housing
  • Dimensions (W x D x H):
    • 220x296,4x43,2 mm
    • 8,66x11,67x1,7 inch
  • Weight: TBD
  • Packaging: tbd
  • Environment:
    • Operating temperature: 0 to +50 °C
    • Storage temperature: -10 to +70 °C
    • Humidity (non condensing): 5 to 95% RH
  • Noise level @1m: TBD
  • BTU:
  • Certificates/Approvals: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHS
  • Standards: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024
Product codes:

LU 01 00090-10G / GigaCore 16i-12x1G-4x10G(SFP+)

LU 01 00090-10G-POE / GigaCore 16i-12x1G-4x10G(SFP+)-PoE++
