GigaCore 18t

MSRP: POA
LU0100095-10G

10Gb Network switch for converged AV networks

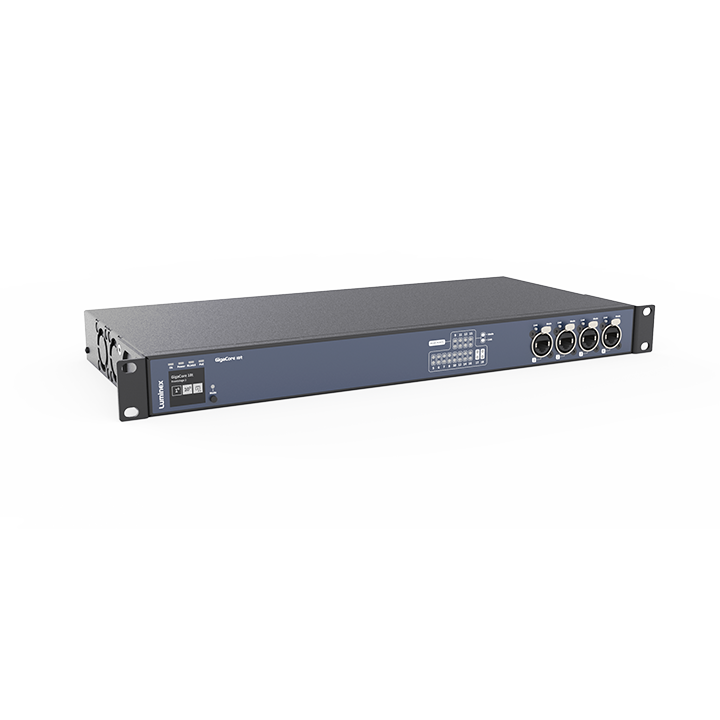

The GigaCore 18t is a 10 Gigabit Ethernet switch for professional touring applications in lighting, audio and video with a frequent tear-down & built-up requirement or for any other application requiring ruggedised connectivity.

It is designed to support the most advanced AV protocols and is the backbone for a converged network, allowing multiple applications to co-exist on the same network

Note: this product replaces the GigaCore 14R.

Variant MSRP
Luminex GigaCore 18t (10Gb) - 16x1G - 2x10G (SFP+) (LU0100095-10G) LU0100095-10G POA
Luminex GigaCore 18t (10Gb) - 16x1G - 2x10G (SFP+) - PoE++ (LU0100095-10G-P500) LU0100095-10G-P500 POA
Would you like a Demo?

10Gb Connectivity

10Gb connectivity allows full network convergence of lighting control, audio, intercom, and video.

PoE++

PoE++ implementation on every copper port allows you to connect any PoE device available today.

Today’s PoE standards (802.3af802.3at and 802.3bt) are all met.

GigaCore 18t can directly drive almost any IP PTZ camera, network node or PoE-powered loudspeaker on the market.



AV validated for real applications.

GigaCore switches are fully validated in real-world applications with major brands in the AV industry for different protocols, including NDI™, Dante™, AVB/MILAN, AES67ST-2110IPMXMA-Net, and many more.

We don’t just approve against a protocol but test it. Because of real-world application validation and interoperability testing, we understand the applications and ensure you can confidently deploy our product.

The Luminex support team speaks your language and has a vast amount of AV knowledge built up, not just from talking protocols but mainly from working with you and living through your real application network challenges.



Robust yet silent design

robust yet silent design allows you to use GigaCore in any AV environment.

Fans are speed controlled to have minimal noise impact and guarantee a long-life operation.

This allows you to place the GigaCore in quiet environments, like theatres and studios.



Araneo to manage and monitor the complete system.

All GigaCore switches can be managed with a single network-wide tool: Araneo.

Araneo’s online mode shows everything you need to know about the status of your GigaCore network. Data streams and topology are visualized, as is the port status of every GigaCore.

Monitor your network with confidence and act before the show gets interrupted!

Araneo lets you plan the complete network topology and GigaCore settings offline. It reduces network commissioning time to a mere click of a button.



Intuitive web UI

The built-in web UI allows you to adjust the settings intuitively. Assigning Groups (VLANS) to ports, creating trunks or modifying other port- and PoE settings can be done on the fly, and the status page gives you an overview of the complete switch at a glance. The toolbox page allows the management of profiles and lets you upgrade firmware easily.



Consistency in LED colours

Consistent Group (VLAN) colours in the web UI, Araneo, and front panel LEDs.

  • Most suitable applications: Touring applications
  • PoE: PoE ++ Optional
  • RLinkX (Link redundancy): Yes
  • Groups (VLAN segmentation): Yes
  • MultiLinkX (Link aggregation): Yes (With future FW upgrade)
  • Profile manager: Yes
  • Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
  • MAC address table: 16384 entries
  • Address learning / Aging: Self learning, Auto aging
  • Switching throughput: 72Gbps
  • Jumbo frames: MTU up to 12000
  • IGMP support: Yes (V1/V2/V3)
  • IGMP snooping: Yes, enabled by default
  • Port sensing: Auto negotiation
  • Auto crossover: MDI / MDIX
  • Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

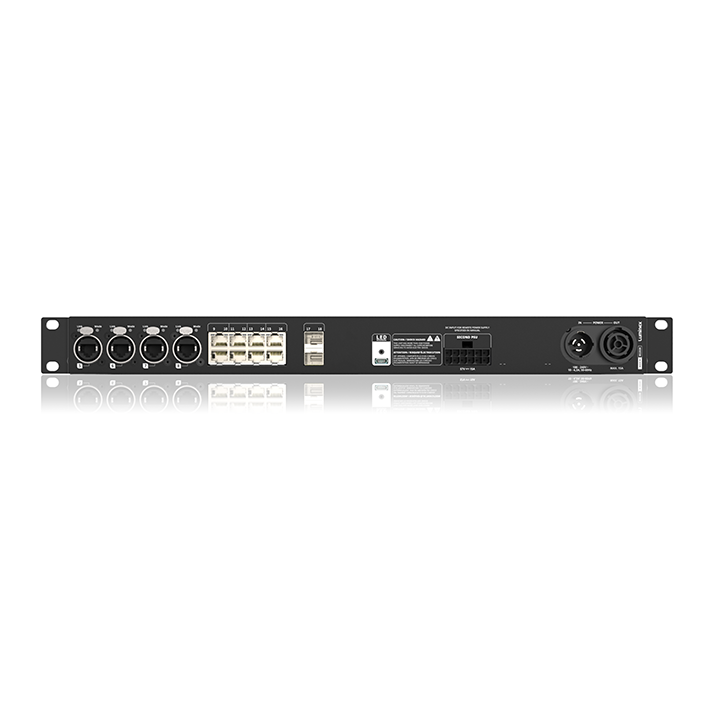

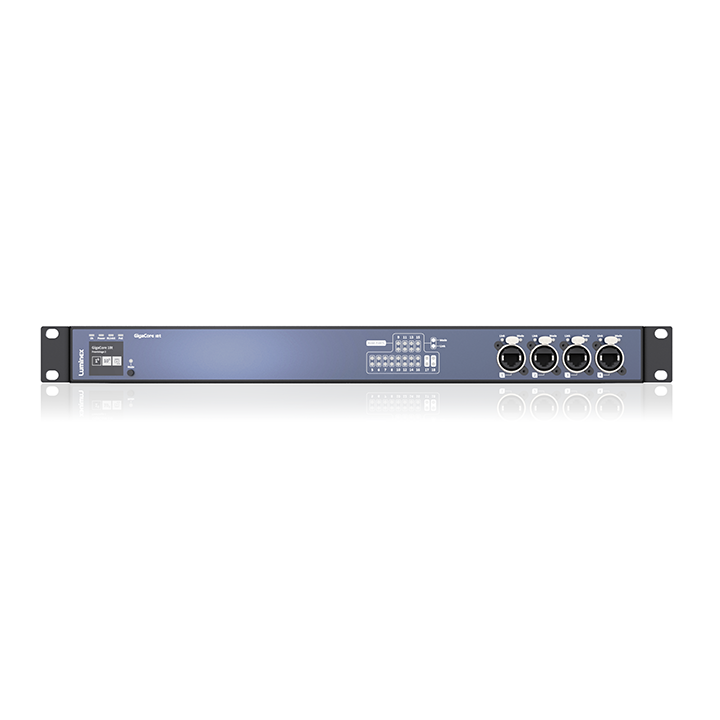

  • Ethernet connectivity: 8 x EtherCon conectors ) (4x front, 4x rear) (1Gbps) 8 x RJ 45 connectors (rear) (1Gbps)
  • Fiber connectivity: 2 x SFP+ cages (10Gbps/1Gbps) (independent from other ports) (rear)
  • Ethernet port speed: 1Gbps
  • Serial: No
  • Power connectivity: 1 x PowerCON True 1 in/out
  • Power input: 100-240VAC, 50-60Hz
  • Power consumption: Maximum 50W - Maximum 1050W (Depending on PoE and PSU configuration)
  • Fuse: NA
  • Backup power input: Yes (PoE models only)
  • Backup PoE power input: Yes
  • PoE: PoE ++ Optional
  • Supported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), PoE++ (802.3bt) (optional), IEEE 1588 PTP V2, AVB/MILAN
  • Sound protocol compliance: Yes (low jitter)
  • Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.3bt PoE++ 90W(optional), IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2, IEEE 802.1 BA-2011 AVB
  • Display and jog: No
  • Configuration: Through the built-in web server, Network wide configuration through Araneo software
  • Status LEDs:
    • Global status LEDs: Device, power, PoE power and mode
    • Port status LEDs: PoE, groups, link/activity and port speed
    • Dark mode available
  • Colored RGB LEDs: Yes
  • Mounting: Rack
  • Enclosure: Robust metal housing
  • Dimensions (W x D x H): 482 x 216,95 x 44 mm (19" x 8.54" x 1,73")
  • Weight: TBC
  • Packaging: TBC
  • Environment:
    • Operating temperature: 0 to +50 °C
    • Storage temperature: -10 to +70 °C
    • Humidity (non condensing): 5 to 95% RH
  • Noise level @1m: TBC
  • BTU:
  • Certificates/Approvals: Pending: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHS
  • Standards: Pending: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024
GigaCore 18t Product Code  Luminex Part Number  GigaCore 18t Description
LU0100095-10G LU0100095-10G Luminex GigaCore 18t - 10G - 16x1G - 2x10G (SFP+)
LU0100095-10G-P500 LU0100095-10G-P500 Luminex GigaCore 18t - 10G - 16x1G - 2x10G (SFP+) - PoE++

*Note: Luminex LCE operates a policy of continuous development. Luminex LCE reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details. www.luminex.be

For the most up-to-date Software and Firmware visit https://www.luminex.be/support-2/
