1Gb Network switch for converged AV networks

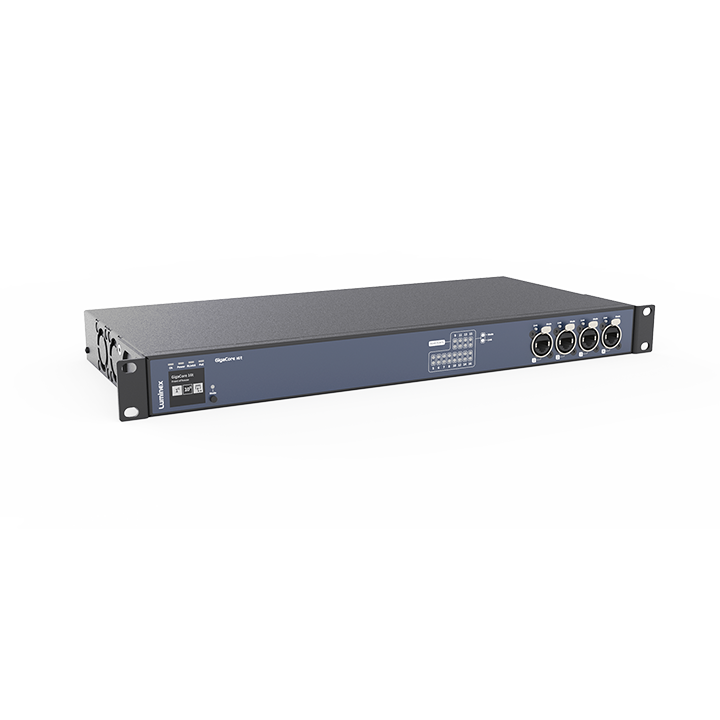

The GigaCore 16t is a 1 Gigabit Ethernet switch for professional touring applications in lighting, audio and video with a frequent tear-down & built-up requirement or for any other application requiring ruggedised connectivity.

It is designed to support the most advanced AV protocols and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.

Note: This product replaces the GigaCore 12.

Variant	MSRP
Luminex GigaCore 16t - 1G (LU0100097-1G) LU0100097-1G	POA
Luminex GigaCore 16t PoE++ (LU0100097-1G-P500) LU0100097-1G-P500	POA

Would you like a Demo?

1Gb Connectivity

GigaCore 16t is an indispensable part of any mobile AV network where reliability and a quick and easy setup are needed.

PoE++

PoE++ implementation on every copper port allows you to connect any PoE device available today.

Today’s PoE standards (802.3af, 802.3at and 802.3bt) are all met.

GigaCore 16t can directly drive almost any IP PTZ camera, network node or PoE-powered loudspeaker on the market.

AV validated for real applications.

GigaCore switches are fully validated in real-world applications with major brands in the AV industry for different protocols, including NDI™, Dante™, AVB/MILAN, AES67, ST-2110, IPMX, MA-Net, and many more.

We don’t just approve against a protocol but test it. Because of real-world application validation and interoperability testing, we understand the applications and ensure you can confidently deploy our product.

The Luminex support team speaks your language and has a vast amount of AV knowledge built up, not just from talking protocols but mainly from working with you and living through your real application network challenges.

Robust yet silent design

A robust yet silent design allows you to use GigaCore in any AV environment.

Fans are speed controlled to have minimal noise impact and guarantee a long-life operation.

This allows you to place the GigaCore in quiet environments like theatres and studios.

Araneo to manage and monitor the complete system.

All GigaCore switches can be managed with a single network-wide tool: Araneo.

Araneo’s online mode shows everything you need to know about the status of your GigaCore network. Data streams and topology are visualized, as is the port status of every GigaCore.

Monitor your network with confidence and act before the show gets interrupted!

Araneo lets you plan the complete network topology and GigaCore settings offline. You are reducing network commissioning time to a mere click of a button.

Intuitive web UI

The built-in web UI allows you to adjust the settings intuitively. Assigning Groups (VLANS) to ports, creating trunks or modifying other port- and PoE settings can be done on the fly, and the status page gives you an overview of the complete switch at a glance. The toolbox page allows the management of profiles and lets you upgrade firmware easily.

Consistency in LED colours

Consistent Group (VLAN) colours in the web UI, Araneo, and front panel LEDs.

Most suitable applications: Touring applications
PoE: PoE ++ Optional
RLinkX (Link redundancy): Yes
Groups (VLAN segmentation): Yes
MultiLinkX (Link aggregation): Yes (With future FW upgrade)
Profile manager: Yes
Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
MAC address table: 16384 entries
Address learning / Aging: Self learning, Auto aging
Switching throughput: 32Gbps
Jumbo frames: MTU up to 12000
IGMP support: Yes (V1/V2/V3)
IGMP snooping: Yes, enabled by default
Port sensing: Auto negotiation
Auto crossover: MDI / MDIX
Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

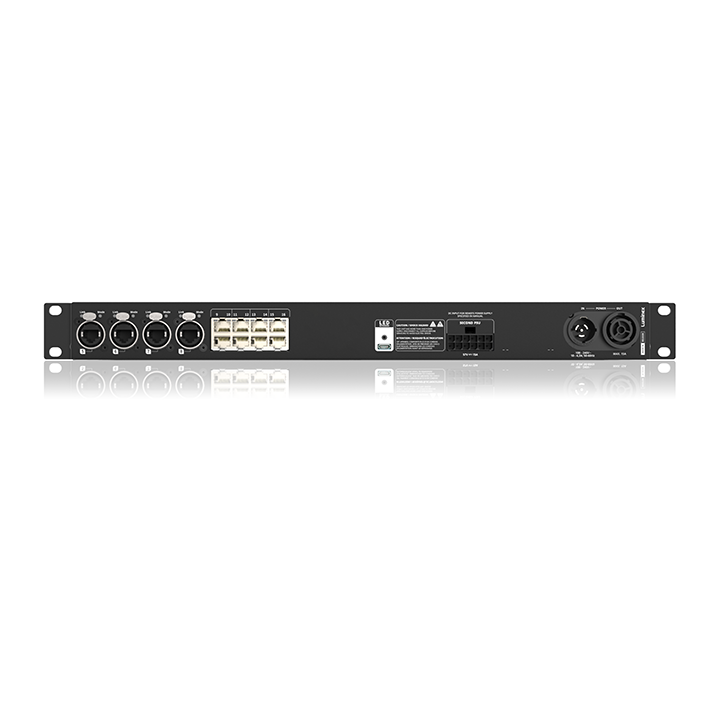

Ethernet connectivity: 8 x EtherCon conectors ) (4x front, 4x rear) (1Gbps) 8 x RJ 45 connectors (rear) (1Gbps)
Fiber connectivity: No
Ethernet port speed: 1Gbps
Serial: No

Power connectivity: 1 x PowerCON True 1 in/out
Power input: 100-240VAC, 50-60Hz
Power consumption: Maximum 50W - Maximum 1050W (Depending on PoE and PSU configuration)
Fuse: NA
Backup power input: Yes (PoE models only)
Backup PoE power input: Yes
PoE: PoE ++ Optional

Supported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), PoE++ (802.3bt) (optional), IEEE 1588 PTP V2, AVB/MILAN
Sound protocol compliance: Yes (low jitter)
Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.3bt PoE++ 90W(optional), IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2, IEEE 802.1 BA-2011 AVB

Display and jog: No
Configuration: Through the built-in web server, Network wide configuration through Araneo software
Status LEDs:
- Global status LEDs: Device, power, PoE power and mode
- Port status LEDs: PoE, groups, link/activity and port speed
- Dark mode available

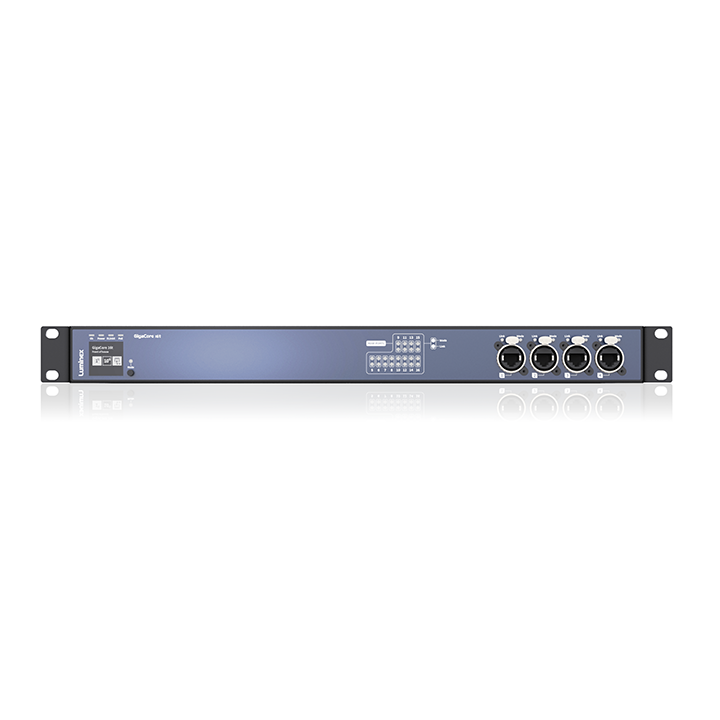

Colored RGB LEDs: Yes

Mounting: Rack
Enclosure: Robust metal housing
Dimensions (W x D x H): 482 x 216,95 x 44 mm (19" x 8.54" x 1,73")
Weight: TBC
Packaging: TBC
Environment:
- Operating temperature: 0 to +50 °C
- Storage temperature: -10 to +70 °C
- Humidity (non condensing): 5 to 95% RH
Noise level @1m: TBC
BTU: TBD
Certificates/Approvals: Pending: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHS
Standards: Pending: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024

GigaCore 16t Product Code	Luminex Part Number	GigaCore 16t Description
LU0100097-1G	LU0100097-1G	Luminex GigaCore 16t - 1G
LU0100097-1G	LU0100097-1G	Luminex GigaCore 16t - 1G
LU0100097-1G-P500	LU0100097-1G-P500	Luminex GigaCore 16t PoE++
