NWP300US Network input panel - BT + 3.5 mm jack (4 CH)
MSRP:
POA
AUNWP300US
The NWP300 is a Dante™/AES67 network input panel featuring a single 3.5 mm stereo jack stereo input connection and an integrated Bluetooth receiver, which can transmit audio signals in a Dante™ audio network.
Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™.
The IP-based communication makes it future-proof while being backwards compatible with many existing products. NWP300 is compatible with any PoE network-based installation thanks to the limited PoE power consumption.
Besides the elegant design, the front panel is finished with high-quality fingerprint-resistant glass. The wall panels are compatible with standard EU-style in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white colour options are available to blend into any architectural design.
Highlights
- 4-channel Dante™/AES67
- Mix any or all inputs internally to save channels on both sides
- Full DSP processing with WaveDynamics™ support
- All mixing and processing is easily done from AUDAC Touch™
- Enable Bluetooth or disable the button functions completely from AUDAC Touch™
- 3.5mm stereo jack input
- Integrated Bluetooth receiver
| System specifications | ||||
|---|---|---|---|---|
| Inputs | Bluetooth | |||
| 3.5 mm Jack | ||||
| Control | 1 button - Bluetooth discoverable | |||
| Indicators | 1 LED (RGB) - Bluetooth status | |||
| Configurable settings | IP settings | |||
| Device name | ||||
| Gain | ||||
| DSP (EQ) | ||||
| Mixing | ||||
| Configuration | Audac Touch™ | |||
| Integrated DSP | Yes (EQ) | |||
| Automatic level control | Yes | |||
| Power | Supply | PoE powered (IEEE 802.3at) | ||
| Connectors | RJ45 (network + PoE) | |||
| 3.5 mm Jack stereo | ||||
| Product Features | ||||
|---|---|---|---|---|
| Construction | ABS | |||
| Front finish | Elegant ABS front panel with glass | |||
| Dimensions | 80 x 80 mm (W x H) (Remote wall panel) | |||

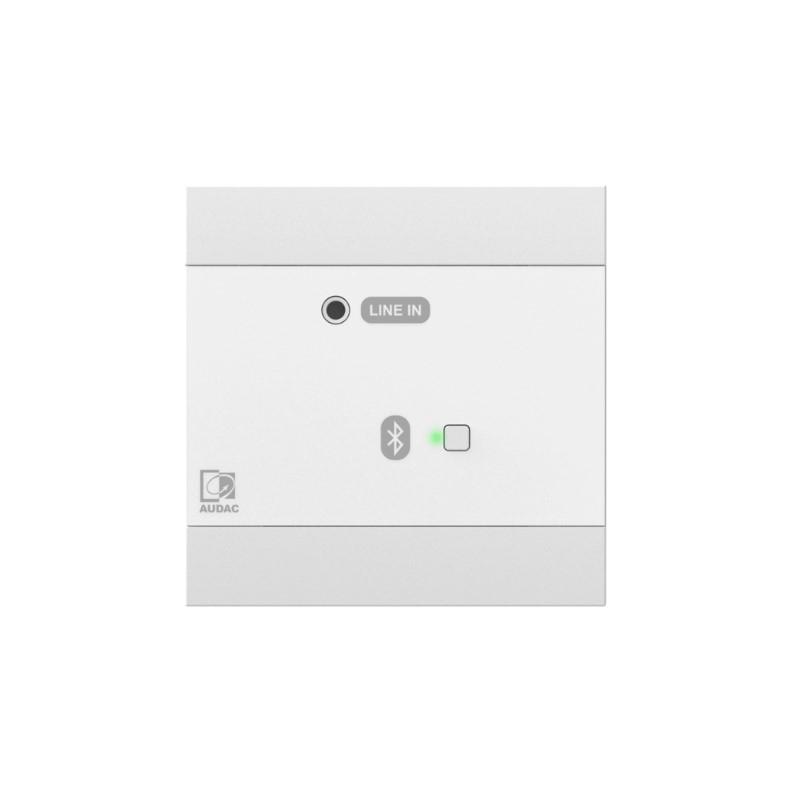

| Colours | White (RAL9003) (NWP300) | |||

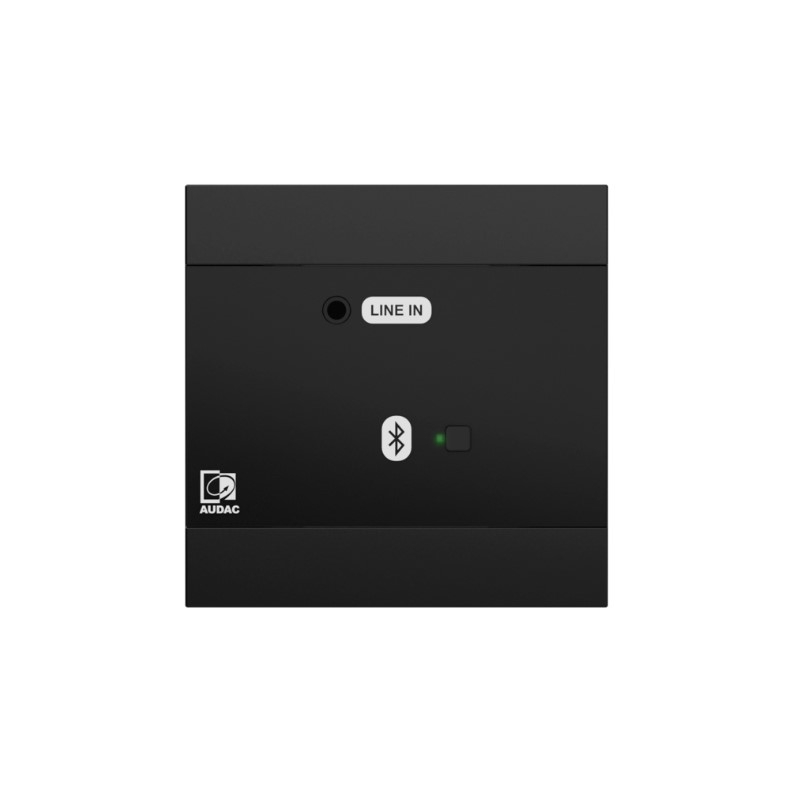

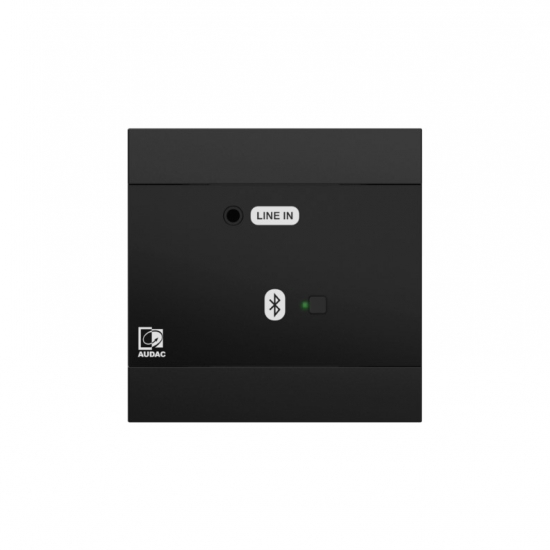

| Black (RAL9005) (NWP300/B) | ||||
| Compatible devices | Any Dante™/AES67 compatible audio device | |||
| Installation standard | Compatible with EU installation materials | |||
Block schematic
Dante™/AES67 networked audio input panel featuring various in- & output connections, ranging from XLR to Bluetooth and even USB Type-C. Powered over Ethernet and with their own internal mixing & EQ functionalities. True flexibility; the choice is yours.
A brief overview
Decentralized TouchLink™ setup
Centralized setup
*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
