PSR119ES/B
MSRP:
POA
CYPSR119ES-B
19" power distribution unit - 9 x IEC C13 sockets + rear switch

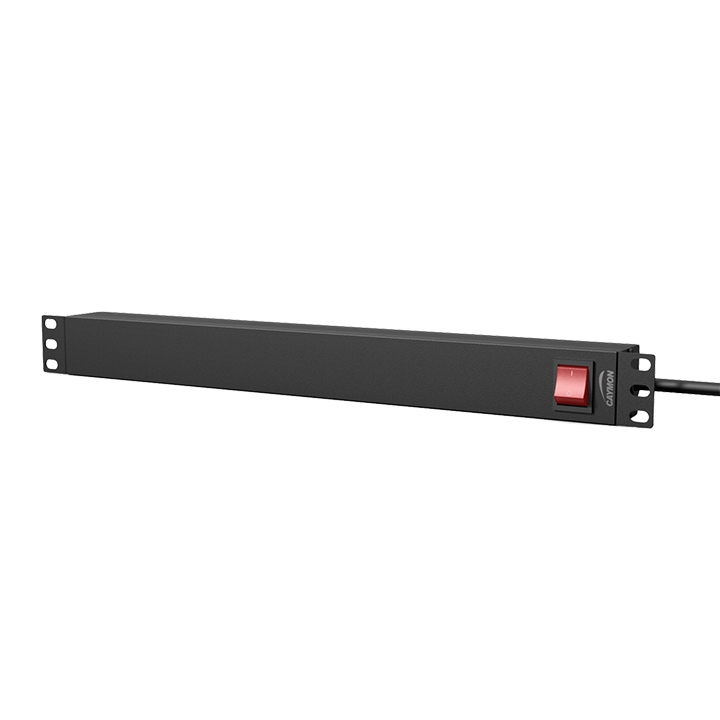

The PSR119ES/B is a 19” power distribution unit, compliant with the ANSI/EIA RS-310D, DIN41491, and IEC60297 standards. It comes with an illuminated switch on the opposite of the socket side. The construction is made using black powder-coated aluminum fitted with steel 19” mounting ears on each side.

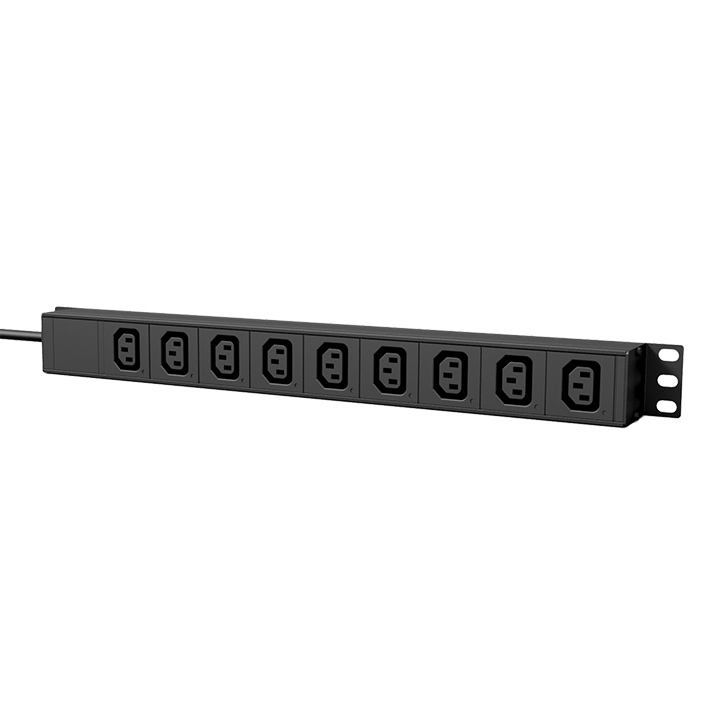

The total height covers a single 19” rackspace, allowing it to be installed in any 19” housing or equipment rack. Using the rotatable side ears, wall mounting is also made possible. Input connections are made using a fixed 2.5 meter connection cable fitted with a male schuko (CEE 7/7) plug, while IEC C13 output sockets allow power distribution to nine devices. A chassis earth connection point is provided for easily connecting your rack/enclosure to mains earth, as required by safety regulations.
Features:
- 9 x IEC C13 power outlet
- Male Schuko (CEE 7/7) input connection
- Black aluminum housing
- 2.5 meter cable
- Chassis earth connection point
- 16A ~ 250 VAC / 4000 W Max
- With illuminated switch
- Rotatable 19” mounting ears
- 3 x 2.5 mm² cable diameter
| Product Features | ||||
|---|---|---|---|---|
| Switch | Opposite side | |||
| Cable length | 2.5 m (8.2 feet) | |||
| Unit height | 1 RU | |||
| Dimensions | 19" x 1.75" x 1.77" (482.6 x 44.4 x 45 mm) (W x H x D) | |||
| Power handling | 250 V AC ~ 16 A / 4000 W | |||
| Weight | 1.76 lbs (0.8 kg) | |||
| Physical Characteristics | ||||
|---|---|---|---|---|
| Inner conductor | Section | 3 x 2.5 mm² | ||
*Note: CAYMON operates a policy of continuous development. CAYMON reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details https://caymon.eu
