A.C. Pro Media - Architainment Media Solutions | SPR8842/B
Home Category Brands CAYMON SPR8842/B

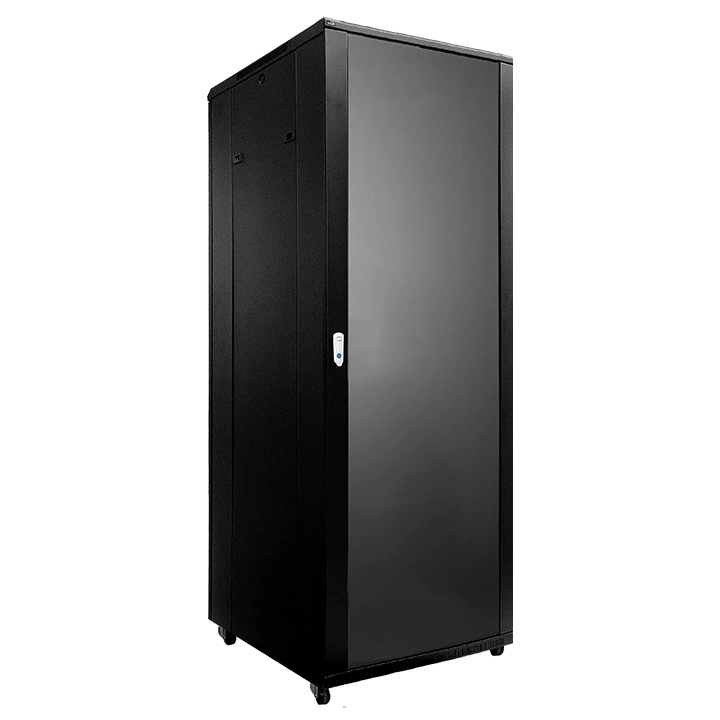

19" rack cabinet - 42 units - 800mm W x 800mm D

The SPR8842 is a professional 19” rack compliant with the ANSI/EIA RS-310D, DIN41491, and IEC60297 standards. A cold rolled steel 2 mm thick frame and 1,2 mm thick plates provide a solid and stable construction making it suitable for heavy equipment, storing up to 42 units inside. The SPR8842 comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and leveling once correctly positioned. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19 “ profiles provide great flexibility for installing equipment depending on its depth.

The SPR8842 comes with a tempered glass front door and steel rear door. The swing handle with cylinder lock safely locks the equipment inside. The width of 800 mm offers additional space for the installation of accessories and cable management systems while guaranteeing optimal convenience for the installation and maintenance of the equipment.

Would you like a Demo?


  • Stores up to 42 units of 19” Equipment
  • Integrated ventilation grid on top
  • 50 mm Wheels + leveling feet included
  • Removable sides for easy installation & cabling
  • Punched square holes for use with snap-in cage nuts
  • Front and rear in depth adjustable 19” profiles (max 740 mm)
  • Tempered glass door with keylock
  • Reversible door position
  • Swing handle with cylinder lock
  • Width of 800 mm for convenient installation and maintenance
  • Available space on sides for cable management systems and accessories
Product Features
Unit height 42 RU
Dimensions 80.91" x 78.15" (63.39") x 80.91" (800 x 1985 (2055) x 800 mm) (W x H (incl. feet) x D)
Max. usable depth 29.13" (740 mm)
Wheel Diameter 1.97" (50 mm)
Colors Black (RAL9004)
Accessories Included 4 x Key for sidepanel lock
    1 x Allen key
    1 x Levelling feet
    4 x Key for front/back door
    20 x KM600
    20 x KS600
  Optional KS600 - M6 x 16 mm bolt DIN7985 Black
    SPR10CS - Rack interconnection slot
    KM600 - M6 Cage nuts
    SPR80LR - L-Rail pair
    SPR80FS - Fixed shelf
    SPR80SS - Sliding shelf
    SPR80RF - Cooling roof fan unit (230V)
Static load capacity (adjustable feet) 1,763.7 lbs (800 kg)
Dynamic load capacity (transport castors) 881.849 lbs (400 kg)
Weight 264.56 lbs (120 kg)

*Note: CAYMON operates a policy of continuous development. CAYMON reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details https://caymon.eu
