SPR618
MSRP:
POA
CYSPR618

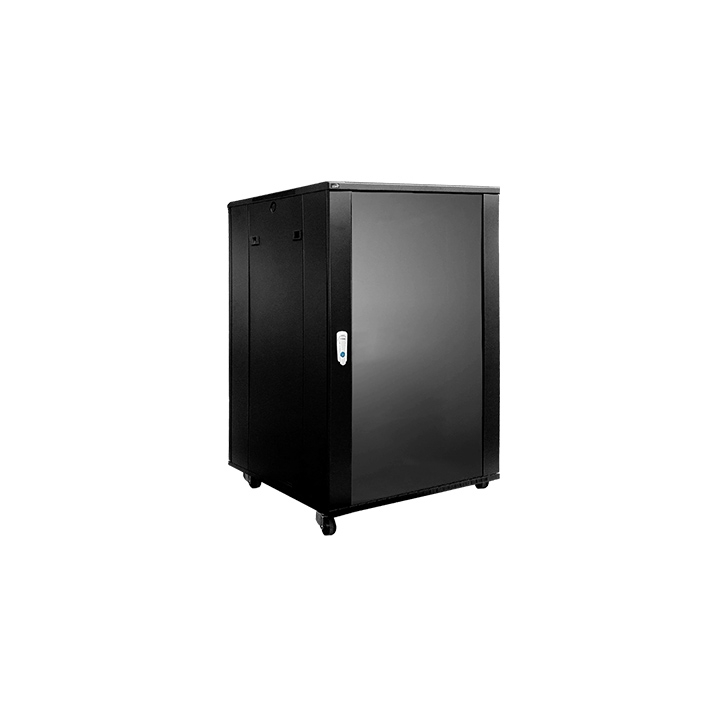

19" rack cabinet - 18 units - 600mm W x 600mm D
The SPR618 is a professional 19” rack compliant with the ANSI/EIA RS-310D, DIN41491, and IEC60297 standards. A cold rolled steel 2 mm thick frame and 1.2 mm thick plates provide a solid and stable construction making it suitable for heavy equipment, storing up to 18 units inside. The SPR618 comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and leveling once correctly positioned. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19 “ profiles provide great flexibility for installing equipment depending on its depth. Both front and rear doors are fitted with a standard keylock.
Features:
- Stores up to 18 units of 19” Equipment
- Standard keylock for both doors
- Integrated ventilation grid on top
- 50 mm Wheels + leveling feet included
- Removable sides for easy installing & cabling
- Punched square holes for use with snap-in cage nuts
- front and rear in-depth adjustable 19” profiles (max 540 mm)
- Tempered glass door with keylock
- Reversible door position
| Product Features | ||||
|---|---|---|---|---|
| Dimensions | 23.62" x 36.14" (38.89") x 23.62" (600 x 918 (988) x 600 mm) (W x H (incl. feet) x D) | |||
| Unit height | 18 RU | |||
| Max. usable depth | 21.26" (540 mm) | |||
| Wheel | Diameter | 1.97" (50 mm) | ||
| Colors | Black (RAL9004) | |||
| Accessories | Included | 4 x Levelling feet | ||
| 4 x Key for front/back door | ||||
| 4 x Key for sidepanel lock | ||||
| 20 x KS600 | ||||
| 20 x KM600 | ||||
| 1 x Allen key | ||||
| Optional | SPR10CS - Rack interconnection slot | |||
| SPR60FS - Fixed shelf | ||||
| SPR60SS - Sliding shelf | ||||
| SPR60LR - L-rail (horizontal support) | ||||
| SPR60PT - Rack plinth | ||||
| SPR60RF - Cooling roof fan unit (230V) | ||||
| KS600 - M6 x 16 mm bolt DIN7985 Black | ||||
| KM600 - M6 Cage nuts | ||||
| Weight | 108.03 lbs (49 kg) | |||
| Static load capacity (adjustable feet) | 1,763.7 lbs (800 kg) | |||
| Dynamic load capacity (transport castors) | 881.849 lbs (400 kg) | |||
*Note: CAYMON operates a policy of continuous development. CAYMON reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details https://caymon.eu
