MERO6 High-end 2-way in-wall speaker 6"
MSRP:
POA
AUMERO6-
High-end 2-way in-wall speaker 6"

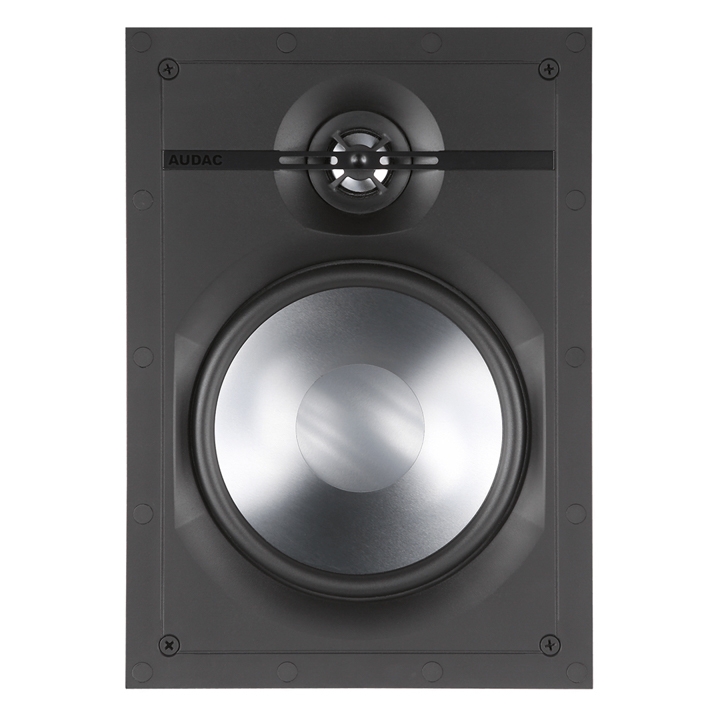

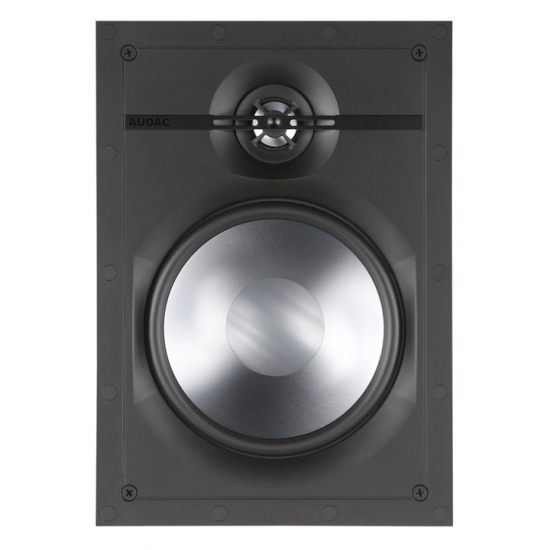

The selection of high-grade materials in combination with accurate acoustics craftsmanship makes the MERO speakers superior in their class. The largest MERO6 consists of a 6” aluminum cone woofer and complementary 1” dome tweeter that are smoothly matched and optimized using a high-quality crossover network. An acoustically optimized waveguide matches the dispersion of woofer and tweeter, while a phase-plug reduces diffraction and enhances off-axis high frequency response. All these details share their part to its pure sound. An elegant look with minimal visual impact is created by the slim grill with very thin border, while great ease and installers convenience is guaranteed using the quick-fix mechanism with Gold-CON connectivities. The grill is held in place using neodymium magnets, providing a quick and stable assembly. Installation can be done in both vertically and horizontally, while the rotatable tweeter allows optimal orientation positioning.
- 1" + 6" Aluminum membrane drivers
- SlimLine™ grill with 1mm thin border
- Gold-Con™ spring clamps

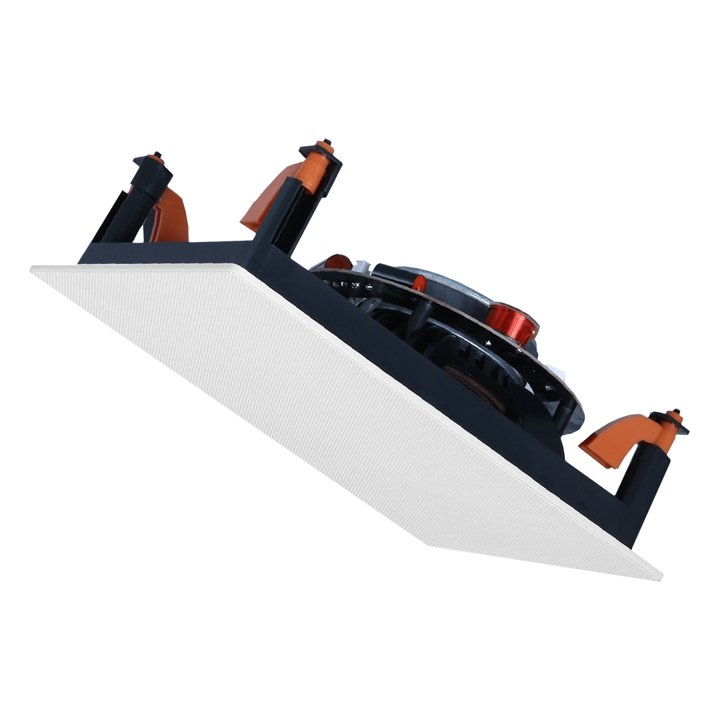

- QuickFix installation system
| Speaker type : | 2-way |
| Max. Power : | 120 W |
| RMS Power : | 60 W |
| Impedance : | 8 Ω |
| Sensitivity (1W/1m) : | 88 dB |
| Sound Pressure (Max. W/1m) : | 106 dB |
| Frequency Response (± 3 dB) : | 55 Hz - 20 kHz |
| Frequency Range (-10 dB) : | 44 Hz - 20 kHz |
| Crossover Frequency : | 3 kHz |
| Crossover Type : | Passive built-in |
| Dispersion Horizontal : | 160° |
| Dispersion Vertical : | 140° |
| Connectors : | Gold-Con™ spring clamps |
| Drivers HF : | 1” Aluminium membrane |
| Drivers LF : | 6” Aluminium membrane (coaxial) |
| Dimensions : | 196.5 x 276.5 x 82 mm (W x H x D) |
| Construction : | ABS |
| Front finish : | Thin edged white grill (RAL9003) |
| Cut-out measurement : | 174 x 254 mm |
| Built-in depth : | 78.5 mm |
| Mounting & handling : | 4 Screw quick-fixing mechanism |
| Colours : | Black frame & white grill |
| Weight : | 1.660 kg |
| Operating temperature : | -20 °C ~ 60 °C |
| Accessories Included : | Cut-out template |
| Accessories Included : | GLM06/W - White grill (RAL9003) |
| Accessories Optional : | WTR24 - 24W 100V line transformer |
| Accessories Optional : | GLM06/B - Black grill (RAL9005) |
| Accessories Optional : | GLM06/P - Paintable grill |
The missing link in speaker systems
These high quality loudspeaker connections are treated with an additional conductive Gold plating that ensures the best sound quality and creates the superior connection between the speaker and the audio cable. The spring clamp connector ensures a rapid installation time without the need of additional tools.
Allow your ears to spark your attention, not your eyes
Due to its slim design with a very thin border of only 1 mm and a limited grill depth which extrudes from the ceiling surface by only 3.2 mm, loudspeakers with SlimLine™ technology will become nearly invisible when mounted. This elegant and unobtrusive grill is held in place by means of powerful neodymium magnets, making assembly and disassembly very easy, while also providing an extremely reliable solution for keeping the grill in place during the complete lifetime of the loudspeaker.
*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
