WX502_O Outdoor universal wall speaker 5 1/4"

MSRP: POA
AUWX502MK2/OB

Outdoor universal wall speaker 5 1/4"

The WX502/O is a powerful 2-way performance speaker which is specially designed for outdoor use, ensuring true-to-nature, high fidelity reproduction of music and speech. It is fitted with a 1” dome tweeter and a 5 1/4”low-frequency loudspeaker, capable of delivering a power of 50 Watt. It can be used in standard 8 Ohm systems but also in 100V PA systems with power taps for 40 Watt, 20 Watt, and 10 Watt.

The material used for the mounting bracket on the outdoor versions has been improved by using aluminum, making the WX series MK2 even more resistant to extreme weather conditions. The bracket allows users to mount the WX502/O vertically as well as horizontally.

Special treatment with powder coating provides the necessary protection for all weather conditions. Because of this, the brackets can pass the 96 hours salt-spray test. A drain hole behind the aluminum grill allows water to flow out and the rotatable 5 pole waterproof connector with power tap selection makes sure that the speaker meets the IP55 standard. The included mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker, and an integrated advanced protection network protects the tweeter against overload.

Variant MSRP

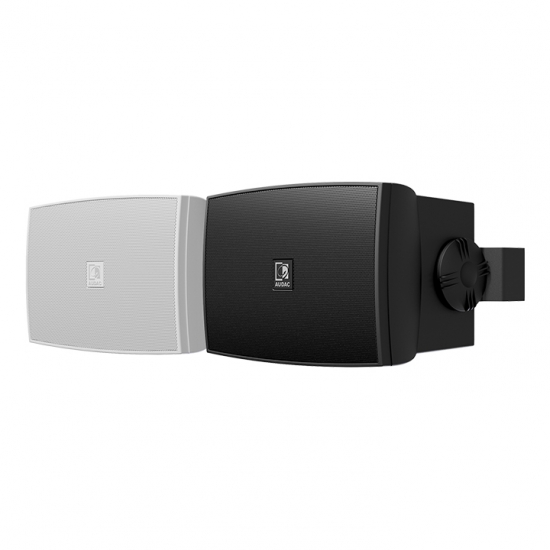

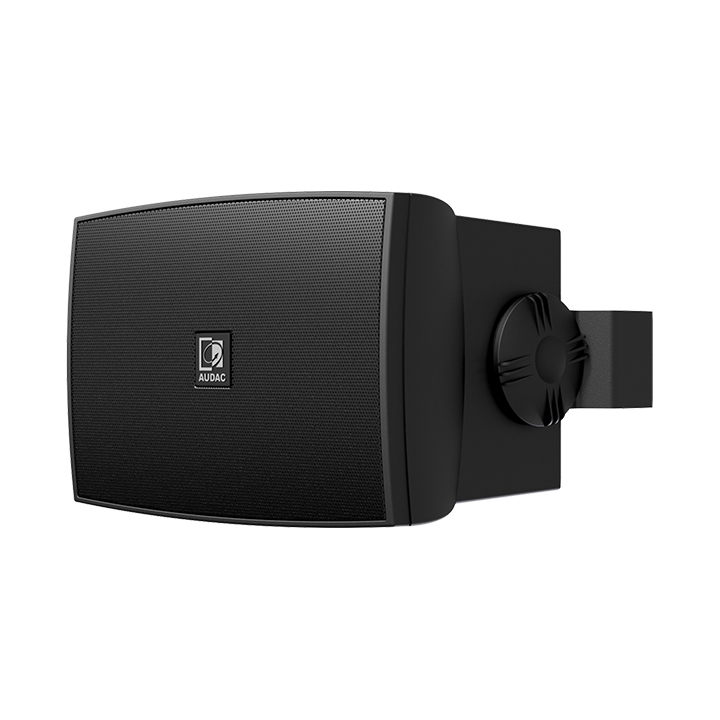

Outdoor black version AUWX502MK2/OB POA

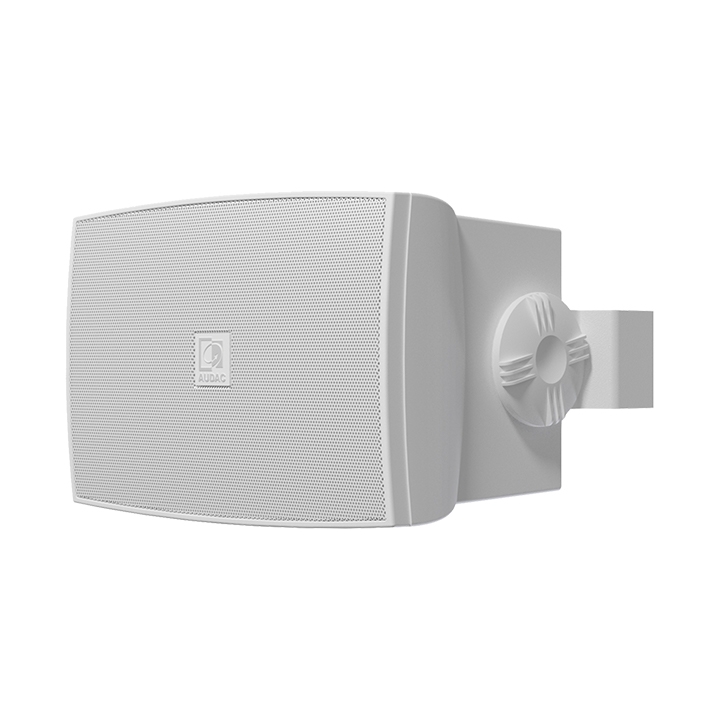

Outdoor white version AUWX502MK2/OW POA
Would you like a Demo?

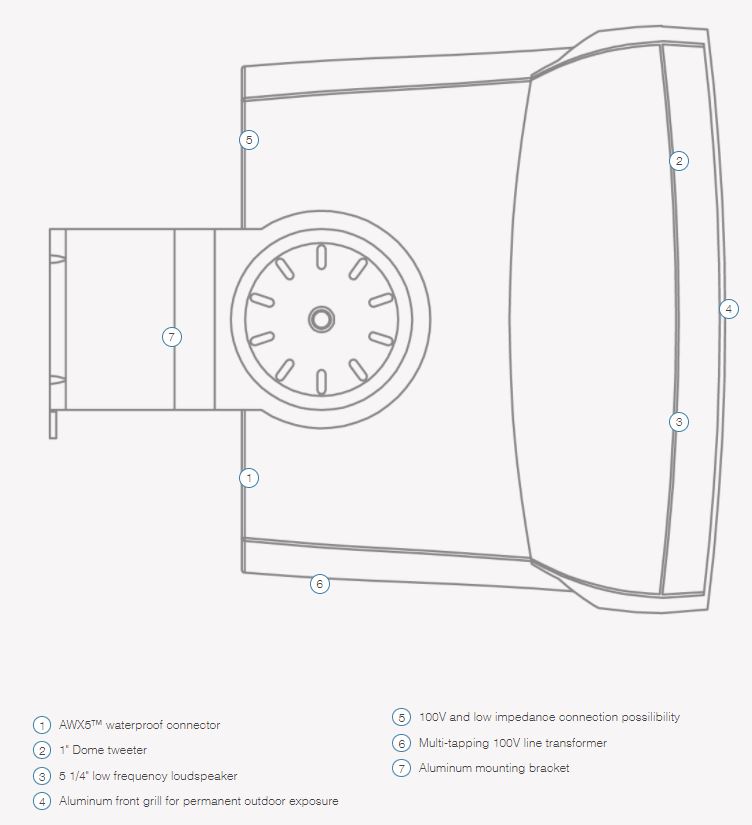

  • 1" Dome tweeter
  • 5 1/4" Low-frequency loudspeaker
  • Vertical and horizontal mounting
  • Aluminum grill
  • Aluminum mounting bracket (MK2 version)
  • Multi-tapping 100V line transformer
  • 100V and low impedance connection possibility
  • AWX5™ waterproof connector

IP55 100V 8 Ohm Waterproof

Note: Sold in pairs, priced per speaker

Connectors : Waterproof AWX-5 connector
Crossover Frequency : 2.5 kHz
Crossover Type : Passive built-in
Drivers HF : 1”
Drivers LF : 5”
Frequency Range (-10 dB) : 55 Hz - 20 kHz
Frequency Response (± 3 dB) : 70 Hz - 18 kHz
Impedance : 8 Ω
Ingress Protection rating : IP55
Line Transformer Tappings 1 : 125 Ω - 100 V / Not used - 70 V / 40 W
Line Transformer Tappings 2 : 250 Ω - 100 V / 40 W - 70 V / 20 W
Line Transformer Tappings 3 : 500 Ω - 100 V / 20 W - 70 V / 10 W
Max. Power : 100 W
Sensitivity (1W/1m) : 87 dB
Sound Pressure (Max. W/1m) @ 100 V : 102 dB
Sound Pressure (Max. W/1m) @ 8 Ω : 104 dB
Speaker type : 2-way
RMS Power : 50 W
Dispersion Horizontal : 110°
Dispersion Vertical : 110°
Colours : Black (RAL9005) (WX502MK2/OB)
Colours : White (RAL9003) (WX502MK2/OW)
Construction : ABS
Dimensions : 8.3" x 5.8" x 5.4" (212 x 147 x 136 mm) (W x H x D)
Front finish : Aluminium grill
Mounting & handling : Mounting bracket
Operating temperature : -13 °F ~ 158 °F (-25 °C ~ 70 °C)
Weight : 5.59 lbs (2.54 kg)
Accessories Included : 5-pin connection cable (70 cm)
Accessories Included : Mounting bracket
Accessories Optional : AU570120005 - 5-pin cable 0.5 m
Accessories Optional : AU570120025 - 5-pin cable 2.5 m
Accessories Optional : AU570120050 - 5-pin cable 5 m

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
