WX802 8" Universal wall speaker
MSRP:
POA
AUWX802MK2/B
8" Universal wall speaker

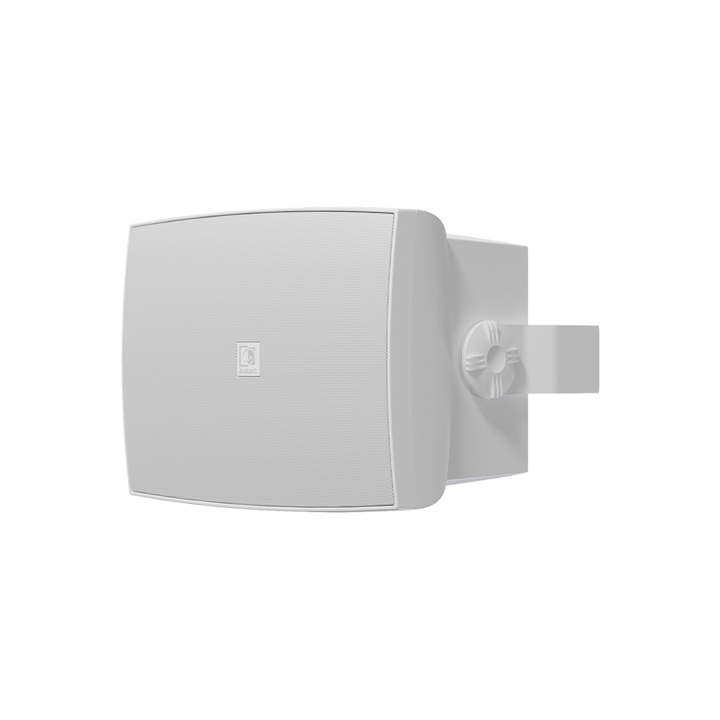

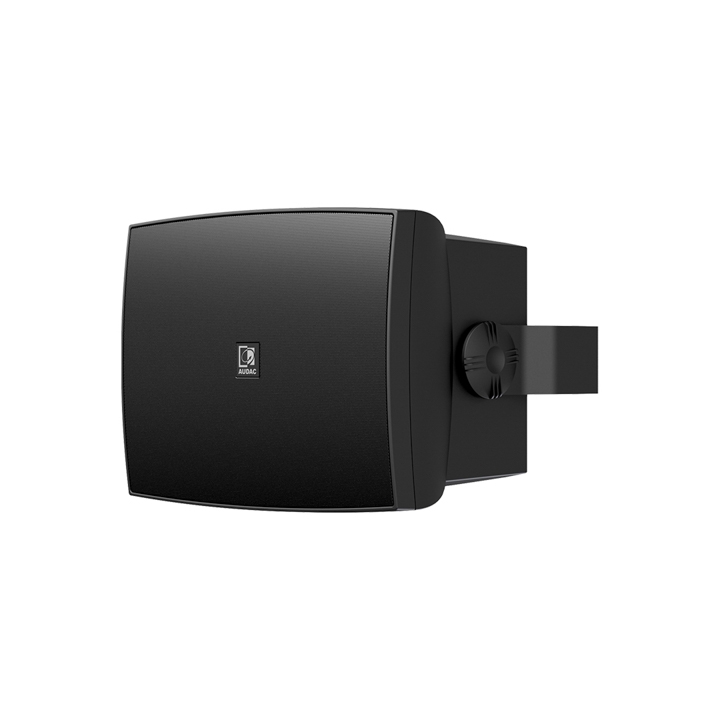

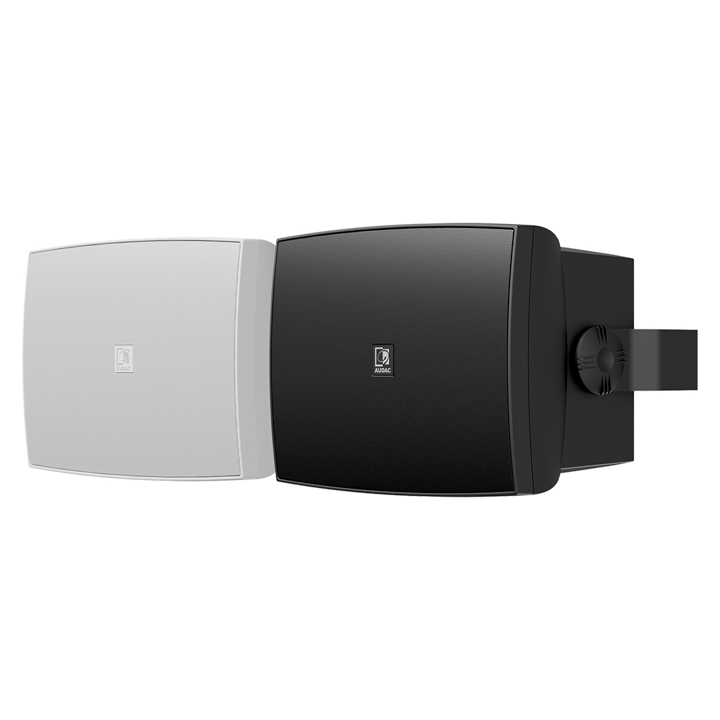

The WX802 is a powerful 2-way performance speaker suitable for a wide variety of applications, ensuring true-to-nature, high fidelity reproduction of music and speech. It is fitted with a 1” dome tweeter and an 8” low-frequency loudspeaker, capable of delivering a power of 70 Watt. It can be used in standard 16 Ohm systems but also in 100V PA systems with power taps for 60 Watt, 30 Watt, and 15 Watt. The elegant shaped synthetic enclosure is available in two different colors (black & white), making it blend into any environment, going from standard indoor home to special indoor design interiors. The included steel mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker and an integrated advanced protection network protects the tweeter against overload.

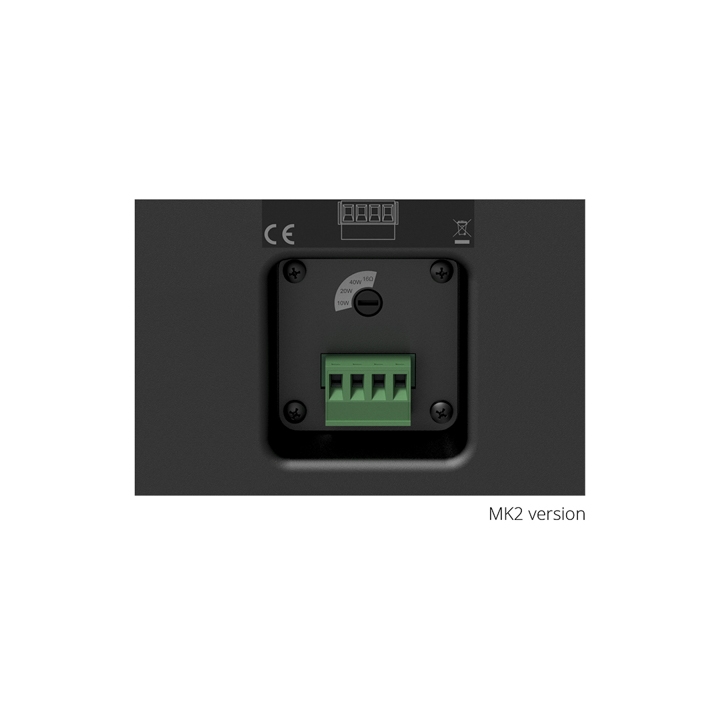

This new series retains all its strengths but has also been upgraded in a few specific areas with installer convenience and durability in mind. The connection of the indoor loudspeakers is changed to a terminal block, which makes it easier to install and connect the WX MK2 series wall speaker, while daisy-chaining is made more convenient through additional connection terminals (4-pin). Both indoor and outdoor versions are now equipped with an elegant rotatable AUDAC logo.

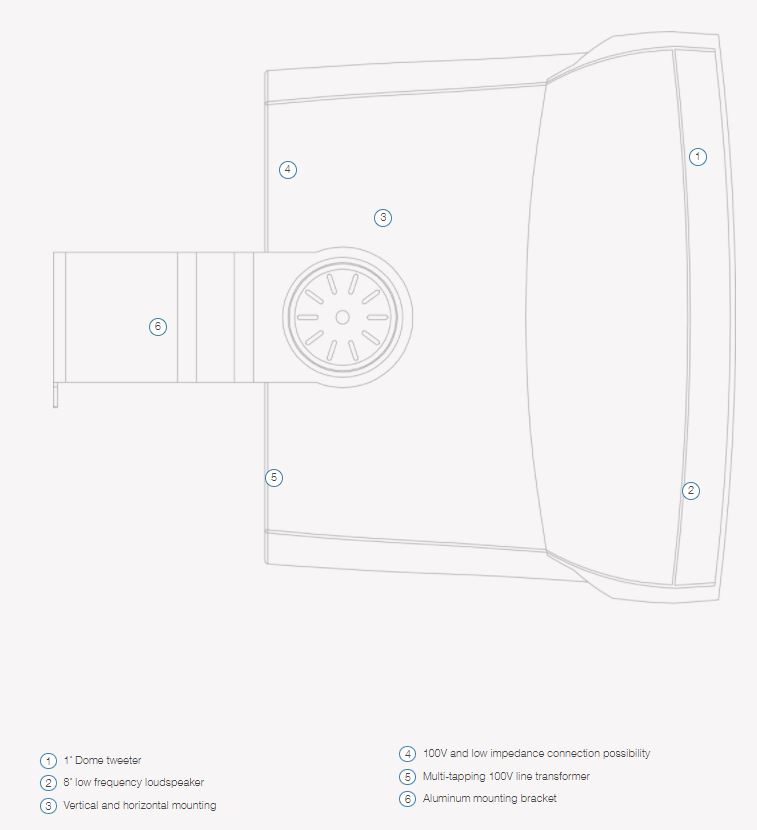

- 8" Low-frequency loudspeaker
- 1" Dome tweeter
- Terminal block connection (MK2 series)
- Vertical and horizontal mounting
- 100V and low impedance connection possibility
- Multi-tapping 100V line transformer
Note: Sold in pairs, priced per speaker
| Crossover Frequency : | 2.4 kHz |
| Crossover Type : | Passive built-in |
| Drivers HF : | 1” |
| Drivers LF : | 8” |
| Frequency Range (-10 dB) : | 50 Hz - 20 kHz |
| Frequency Response (± 3 dB) : | 60 Hz - 17 kHz |
| Impedance : | 16 Ω |
| Line Transformer Tappings 1 : | 83 Ω - 100 V / Not used - 70 V / 60 W |
| Line Transformer Tappings 2 : | 167 Ω - 100 V / 60 W - 70 V / 30 W |
| Line Transformer Tappings 3 : | 333 Ω - 100 V / 30 W - 70 V / 15 W |
| Line Transformer Tappings 4 : | 667 Ω - 100 V / 15 W - 70 V / 7.5 W |
| Max. Power : | 140 W |
| Sensitivity (1W/1m) : | 89 dB |
| Sound Pressure (Max. W/1m) @ 100 V : | 106 dB |
| Speaker type : | 2-way |
| RMS Power : | 70 W |
| Dispersion Horizontal : | 110° |
| Dispersion Vertical : | 110° |
| Sound Pressure (Max. W/1m) @ 16 Ω : | 108 dB |
| Colours : | Black (RAL9005) (WX802/B, WX802MK2/B) |
| Colours : | White (RAL9003) (WX802/W, WX802MK2/W) |
| Construction : | ABS |
| Dimensions : | 14.09" x 10.87" x 11.24" (358 x 276.1 x 285.6 mm) (W x H x D) (Incl. bracket) |
| Front finish : | Steel grille |
| Mounting & handling : | Mounting bracket |
| Operating temperature : | -13 °F ~ 158 °F (-25 °C ~ 70 °C) |
| Weight : | 16.5 lbs (7.5 kg) |
*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
