CASY018/B
MSRP:
POA
CYCASY018-B

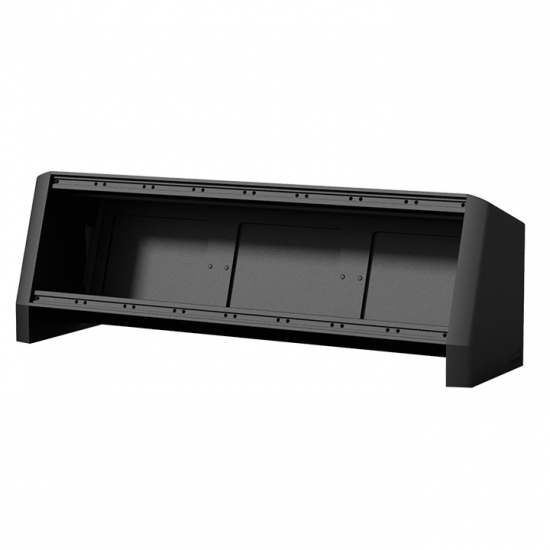

CASY On-Table Chassis - 8 space
The CASY018 is a modular desktop chassis that can be fitted with 8 modules from the CASY range. The flexible and modular structure ensures maximum versatility, allowing the system to be adapted to project-specific requirements. Possibilities range from audio, video, and data interconnection to power distribution, control panels, power supplies, and many more.
The aluminum construction features pre-threaded hole inserts allowing module installation with a maximum of 8 units with a built-in depth of up to 60 mm. It can be mounted on any table or desk, offering convenient connections in a studio, broadcast, or office environments. Cable entry is possible through large access holes on the rear or guiding through the side covers. The sides are constructed out of ABS material and modules can be fixed inside the unit using the included M3 screws. The overall construction is finished in a black (RAL9004) structured and scratch-resistant powder coating.
Features:
- Flexible structure for system integration & connectivity
- Wide variation of compatible modules available
- 60 mm usable depth
- Pre-threaded mounting profile for easy assembly
- Structured and scratch-resistant black powder coating
- 18° angle
- Aluminum extruded construction with rounded ABS sides
- Stores 8 units of CASY modules
| Product Features | ||||
|---|---|---|---|---|
| Module | Units | 8 x front side | ||
| Dimensions | 12.44" x 4.26" x 3.47" (316 x 108.1 x 88.2 mm) (W x H x D) | |||
| Max. usable depth | 60 mm (2.36") | |||
| Weight | 1.32 lbs (0.6 kg) | |||
| Construction | Aluminum extrusion with plastic side covers | |||
| Connection | Large access holes on the rear side Cable duct or gland entry on the sides | |||
| Finish | Structured powder coating | |||
| Colors | Black (RAL9004) | |||
*Note: CAYMON operates a policy of continuous development. CAYMON reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details https://caymon.eu
