CASY014/B

MSRP: POA
CYCASY014

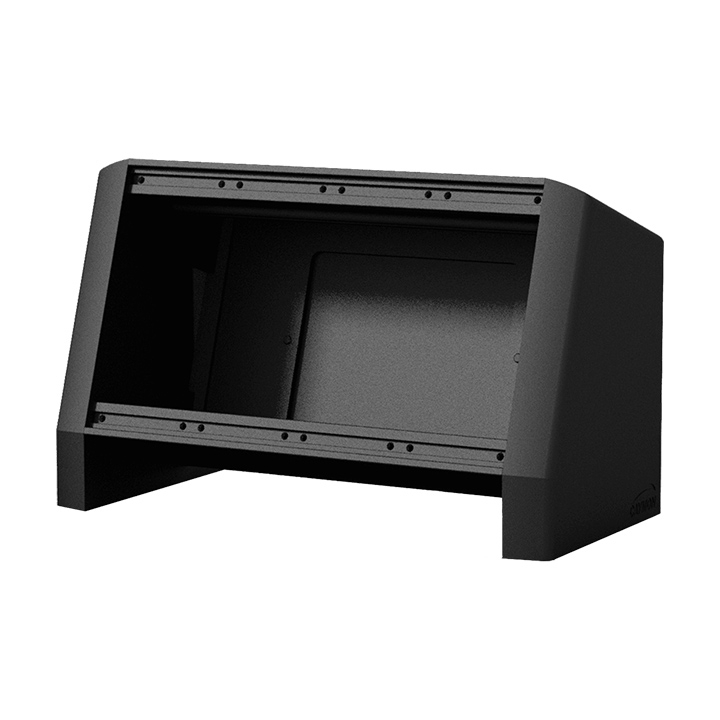

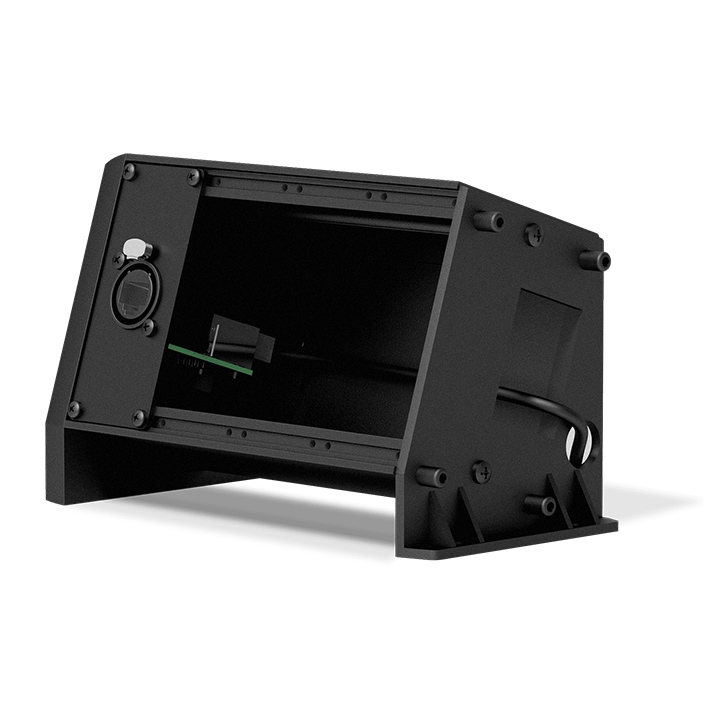

CASY On-Table Chassis - 4 space

The CASY014 is a modular desktop chassis that can be fitted with 4 modules from the CASY range. The flexible and modular structure ensures maximum versatility, allowing the system to be adapted to project-specific requirements. Possibilities range from audio, video, and data interconnection to power distribution, control panels, power supplies, and many more.

The aluminum construction features pre-threaded hole inserts allowing module installation with a maximum of 4 units with a built-in depth of up to 60 mm. It can be mounted on any table or desk, offering convenient connections in a studio, broadcast, or office environments. Cable entry is possible through large access holes on the rear or guiding through the side covers. The sides are constructed out of ABS material and modules can be fixed inside the unit using the included M3 screws. The overall construction is finished in a black (RAL9004) structured and scratch-resistant powder coating.

Would you like a Demo?

Features:

  • Flexible structure for system integration & connectivity
  • Wide variation of compatible modules available
  • 60 mm usable depth
  • Pre-threaded mounting profile for easy assembly
  • Structured and scratch-resistant black powder coating
  • 18° angle
  • Aluminum extruded construction with rounded ABS sides
  • Stores 4 units of CASY modules
Product Features
Module Units 4 x front side
Dimensions 6.77" x 4.26" x 3.47" (172 x 108.1 x 88.2 mm) (W x H x D)
Max. usable depth 60 mm (2.36")
Weight 0.93 lbs (0.42 kg)
Construction Aluminum extrusion with plastic side covers
Connection Large access holes on the rear side Cable duct or gland entry on the sides
Finish Structured powder coating
Colors Black (RAL9004)

*Note: CAYMON operates a policy of continuous development. CAYMON reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details https://caymon.eu
