CASY028
MSRP:
POA
CYCASY028-B
CASY In-table mount box - 8 space

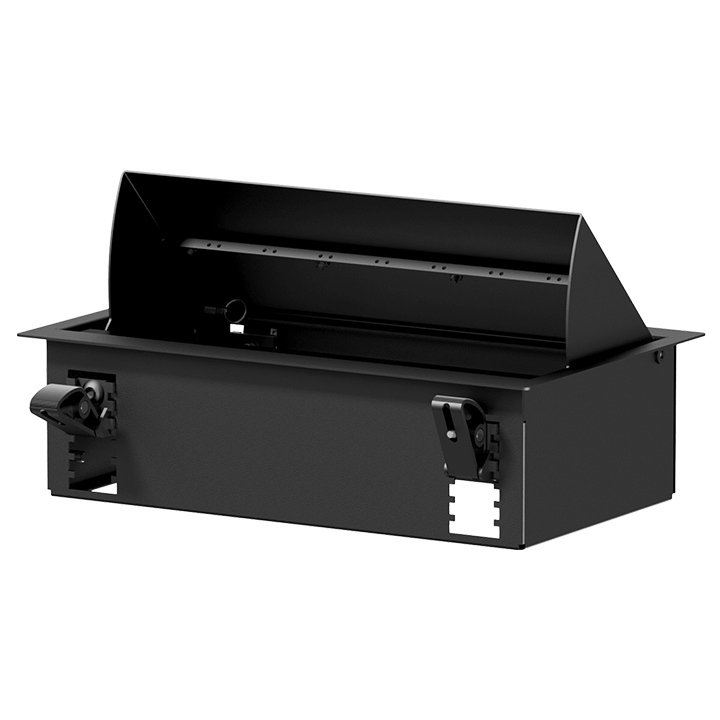

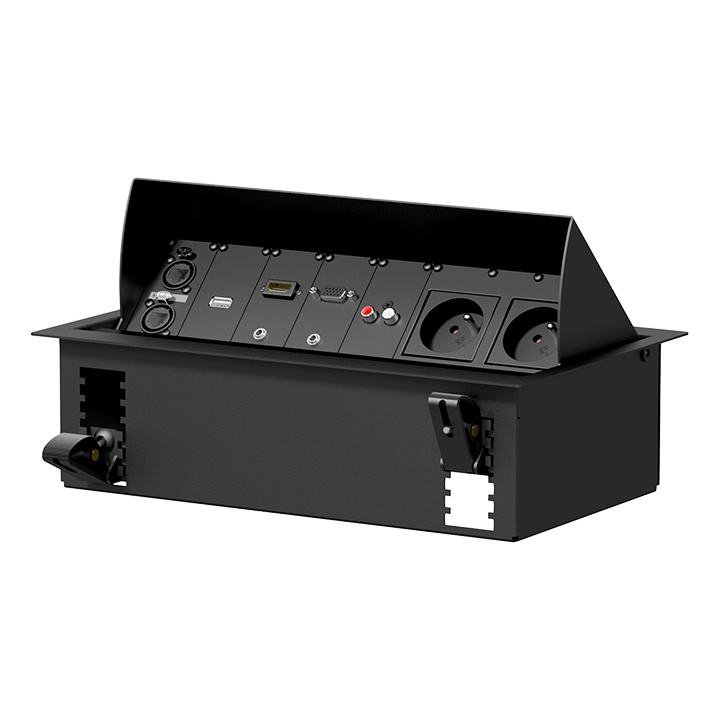

The CASY028 is a modular desktop and wall-mountable chassis which can be fitted with 8 modules from the CASY range. The flexible and modular structure ensures maximum versatility, allowing the system to be adapted to project-specific requirements. Possibilities range from audio, video, and data interconnection to power distribution, control panels, power supplies, and many more.
The cold rolled steel construction features pre-threaded hole inserts allowing module installation with a maximum of 8 units with a built-in depth of up to 68.5 mm. The module insert can be mounted preassembled eliminating the risk of dropping screws or parts inside the wall or table during module mounting. Thanks to the BlindSnap™ mounting system, it can be mounted in any wall or surface without access to the backside. Cable entry with a dust protection brush is possible through large access holes on the rear side. The module tray can be opened and closed for a clean installation. The overall construction is finished in a black (/B) or grey (/G) structured and scratch-resistant powder coating.
Features:
- Solid cold rolled steel construction
- Structured and scratch-resistant black powder coating
- 45° rotatable lid

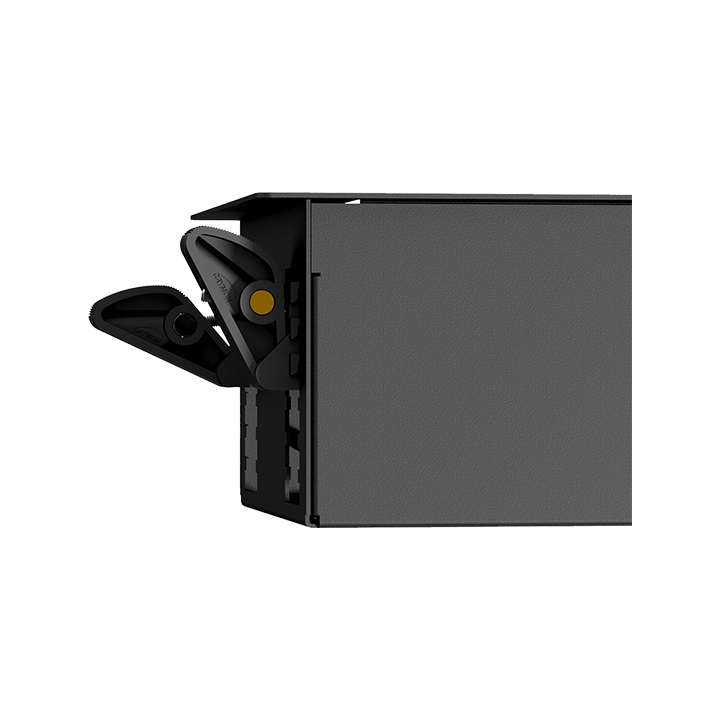

- BlindSnap™ mounting system
- Cable entry with dust protection brush
- Large access holes on the rear
- For desktop and gypsum wall applications
| Product Features | ||||
|---|---|---|---|---|
| Dimensions | 12.68" x 7.80" x 3.60" (322 x 198 x 91.5 mm) (W x H x D) | |||
| Max. usable depth | 68.5 mm (2.7") | |||
| Weight | 5.09 lbs (2.31 kg) | |||
| Construction | Cold rolled steel | |||
| Connection | Large access hole on the rear | |||
| Finish | Structured powder coating | |||
| Colors | Black (RAL9004) | |||

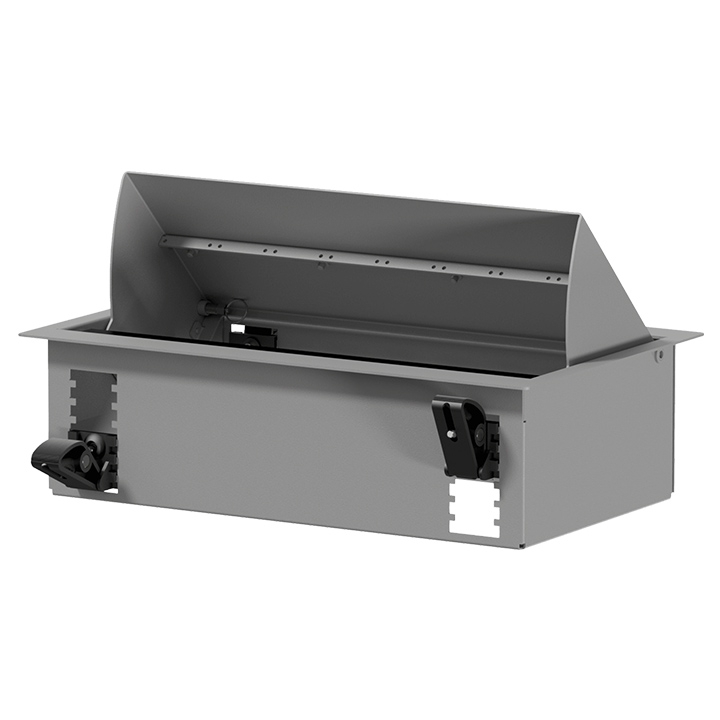

| Grey (RAL9006) | ||||
| Module | Units | 8 x front side | ||
| Cut-out measurement | 12.01" x 6.89" (305 x 175 mm) (W x H) | |||
| Clamping range | 5 - 60 mm (0.24" - 1.97") | |||
| Mounting | BlindSnap™ | |||
*Note: CAYMON operates a policy of continuous development. CAYMON reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details https://caymon.eu
