SCP224 Compact dual-channel power amplifier - 2 x 240W @ 4 Ohm - 480W @ 70/100V


Compact dual-channel power amplifier - 2 x 240W @ 4 Ohm - 480W @ 70/100V

The SCP series is a range of extremely powerful compact dual-channel power amplifiers for commercial use. These half 19” devices can be used in stereo low impedance or 70/100V bridge mode. There are 3 different models to serve a wide range of applications with power ratings that vary between 240W upto 600W in a half 19” rack space housing.

The compact and elegant design of the half 19” rack space enclosure allows for single installation in a 10.5” equipment rack, or side-by-side (two devices) in a 19” equipment rack. Of course, desktop installation or mounting in an equipment rack using the MBS310 series mounting adapters is possible.

You may wonder if so much power in such a small enclosure could cause some heating issues? Not at all, the SCP series is designed in a unique way so that optimal cooling is established, this by active cooling on the SCP224 and SCP230 in order to improve thermal comfort without the need for additional actions.

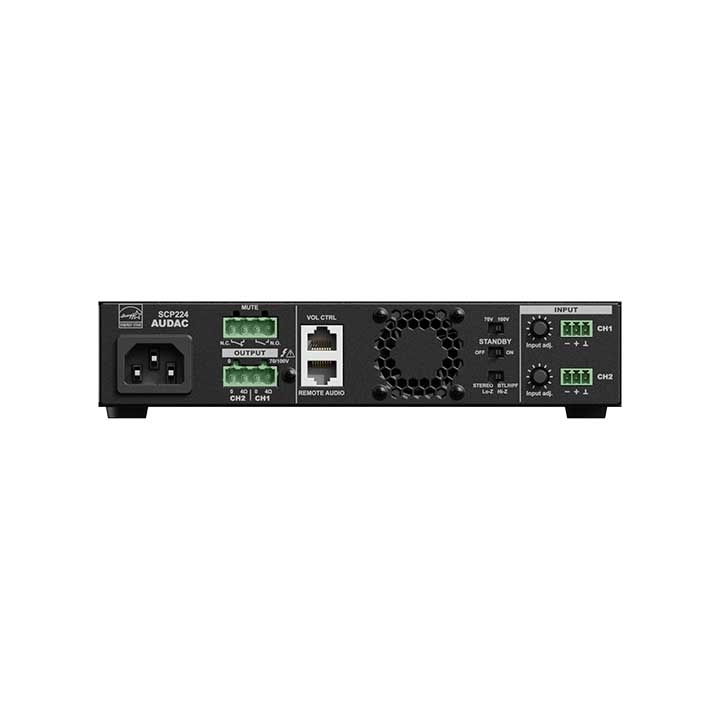

A connection to the WP2xx series input wall panels or volume controllers can be made via the RJ45 connector on the back of the SCP. This allows for a cost-effective plug & play solution to extend or introduce brand-new input possibilities and control options.

Equipped with a standby mode switch, the SCP series will enter an energy-saving standby mode after a period of inactivity making him unique in the market. This feature together with the overall energy-efficient design makes the SCP meet the high standards of the Energy Star certification.

When you combine the SCP series with a suitable pre-amplifier or wall-mounted input panel you create a relatively powerful and complete solution for background music installations.

Would you like a Demo?
  • Energy star certified
  • Compact and lightweight design
  • Compatible with WP2xx series
  • Dual channel power amplifier
  • Energy-saving standby mode

energy star

RMS/AES power handling @ 4 Ω Stereo 2 x 240 W
@ 8 Ω Stereo 2 x 120 W
@ 70/100 V Bridge 480 W
Frequency Response (± 3 dB) 20 Hz - 20 kHz
THD+N (@ 1 kHz) 0.05%
Signal / Noise > 90 dB

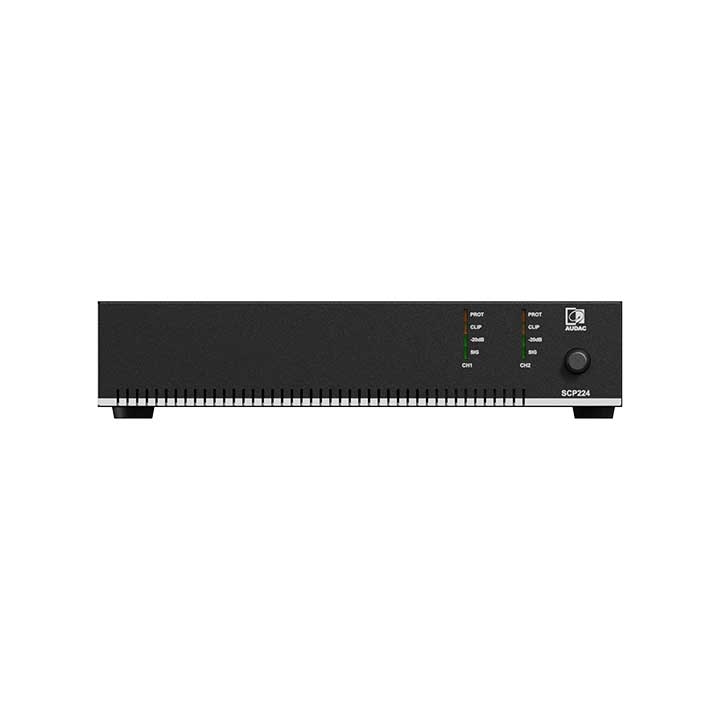

Indicators VU LED bar (front)
Outputs Voltage / Impedance 70-100 V / 4 Ω
Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm)
Inputs Connector 3-pin Euro Terminal Block (Pitch - 3.81 mm)
  IEC C14 Connector
Other Connector RJ45
  Type 1 x Remote Volume controller
    1 x Remote Wall Mixer
    Stereo - BTL/HPF mode configuration
    Priority mute contact
Power Standby switch
  Supply 100 ~ 240 V AC / 50 ~ 60 Hz
Control Gain control potentiometers (rear)
Stereo Low Z & Mono High Z switch
70/100V switch
Cooling Convection cooled
Technology Class-D
Dimensions 8.56" x 1.73" x 11.81" (217.5 x 44 x 300 mm) (W x H x D)
Weight 5.95 lbs (2.70 kg)
Construction Steel
Mounting 1/2 19” / 1 RU or tabletop
Accessories Optional WP2xx Universal wall panel
19” Rackmount adapter

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
