SPR8842GG/B
MSRP:
POA
CYSPR8842GG-B
19" rack cabinet - 42 units - 800mm W x 800mm D - Grill front & rear door
The SPR8842GG is a professional 19” rack compliant with the ANSI/EIA RS-310D, DIN41491, and IEC60297 standards. A cold rolled steel 2 mm thick frame and 1,2 mm thick plates provide a solid and stable construction making it suitable for heavy equipment, storing up to 42 units inside. The SPR8842GG comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and leveling once correctly positioned. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19 “ profiles provide great flexibility for installing equipment depending on its depth.
The SPR8842GG comes with 2 perforated steel grill doors (front and rear). The mesh perforation with a hexagonal pattern provides an optimal airflow through the cabinet. The swing handle with cylinder lock safely locks the equipment inside. The width of 800 mm offers additional space for the installation of accessories and cable management systems while guaranteeing optimal convenience for the installation and maintenance of the equipment.
Features:
- Stores up to 42 units of 19” Equipment
- Width of 800 mm for convenient installation and maintenance
- Available space on sides for cable management systems and accessories
- Integrated ventilation grid on top
- 50 mm Wheels + leveling feet included
- Removable sides for easy installation & cabling
- Punched square holes for use with snap-in cage nuts
- Front and rear in depth adjustable 19” profiles (max 740 mm)
- Reversible door position

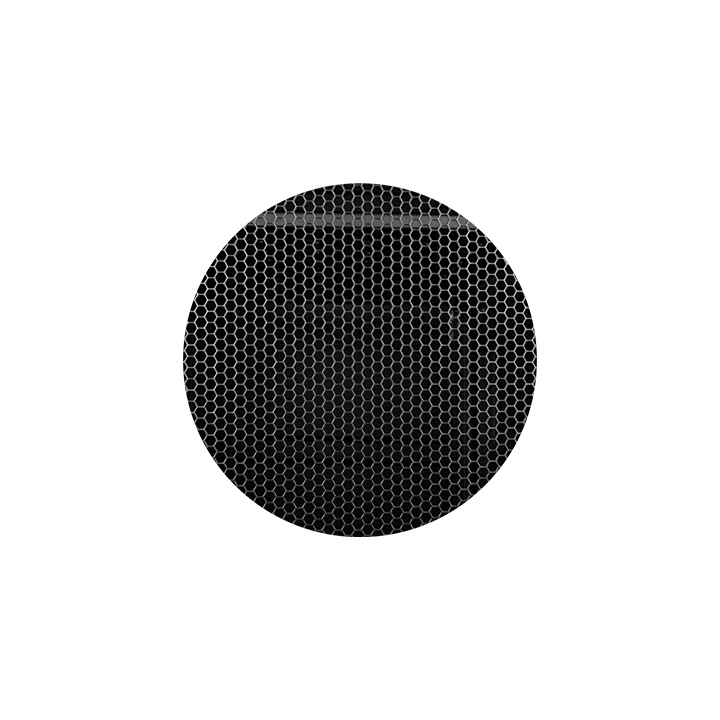

- Mesh perforation with hexagonal pattern

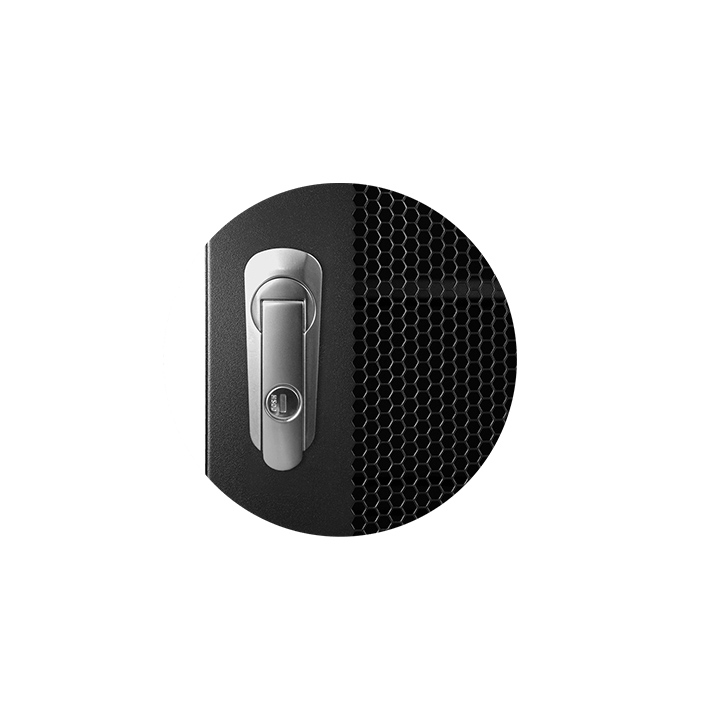

- Swing handle with cylinder lock
| Product Features | ||||
|---|---|---|---|---|
| Unit height | 42 RU | |||
| Colours | Black (RAL9004) | |||
| Accessories | Optional | KS600 - M6 x 16 mm bolt DIN7985 Black | ||
| KM600 - M6 Cage nuts | ||||
| Included | 4 x Key for sidepanel lock | |||
| 1 x Allen key | ||||
| 4 x Levelling feet | ||||
| 4 x Key for front/back door | ||||
| Max. usable depth | 29.13" (740 mm) | |||
| Wheel | Diameter | 1.97" (50 mm) | ||
| Dimensions | 80.91" x 78.15" (63.39") x 80.91" (800 x 1985 (2055) x 800 mm) (W x H (incl. feet) x D) | |||
| Accessories | Included | 20 x KS600 | ||
| 20 x KM600 | ||||
| Static load capacity (adjustable feet) | 1,763.7 lbs (800 kg) | |||
| Dynamic load capacity (transport castors) | 881.849 lbs (400 kg) | |||
| Weight | 233.69 lbs (106 kg) | |||
*Note: CAYMON operates a policy of continuous development. CAYMON reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details https://caymon.eu
